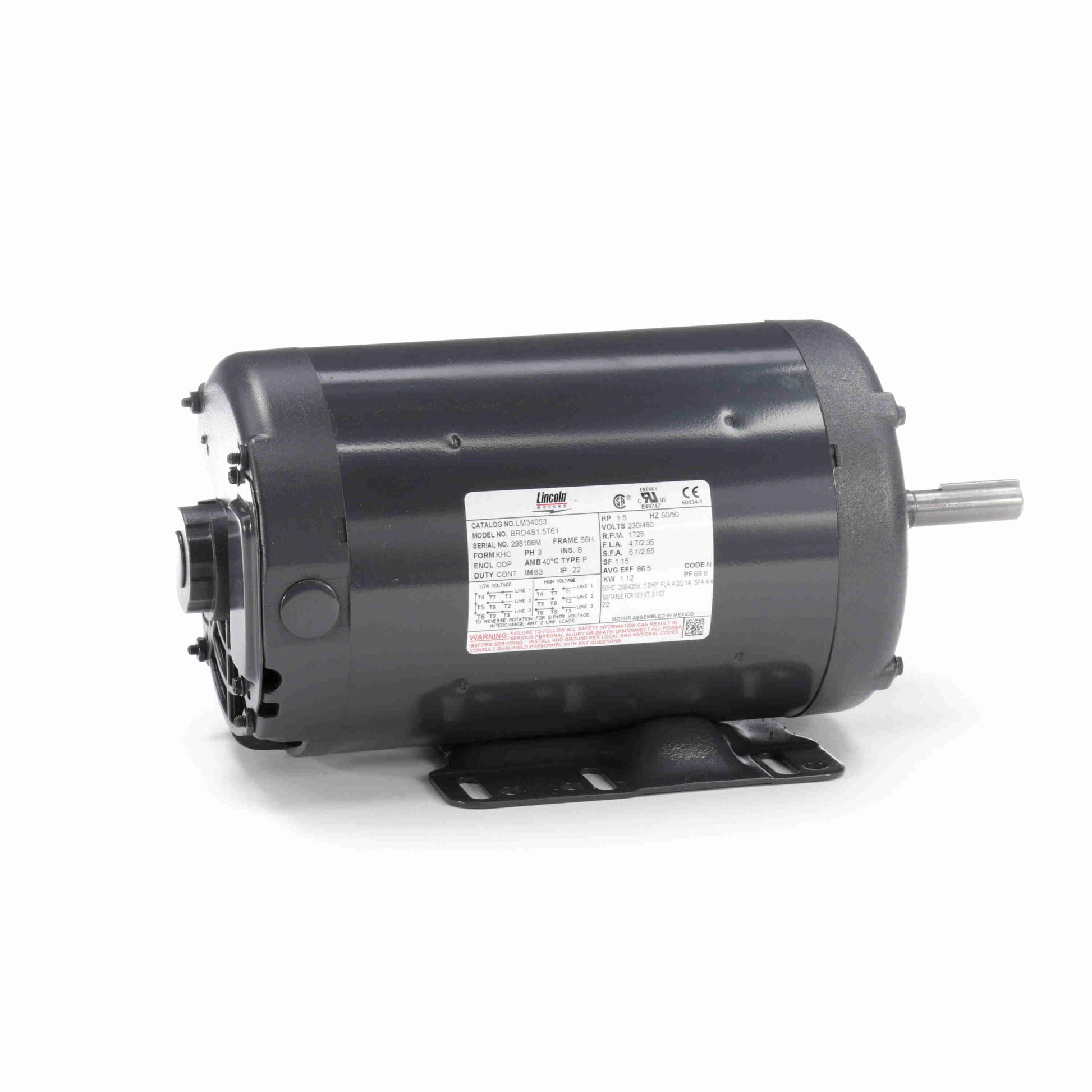

Leeson Electric LM34062, 1/2 HP, 1800 RPM, 56 FR, 575 Vac, 3 PH, DP, Rigid Base, General Purpose.

LM34062, 1/2 HP, 1800 RPM, 56 FR, 575 Vac, 3 PH, DP, Rigid Base, General Purpose.

Engineering Data

Output HP:0.50 Hp
Output KW:0.37 kW
Frequency:60 Hz
Voltage:575 V
Current:0.70 A
Speed:1725 rpm
Service Factor:1.25
Phase:3
Efficiency:78.2 %
Power Factor:55.5
Duty:Continuous
Insulation Class:B
Design Code:B
KVA Code:LATER
Frame:56
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:Y
IP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:4
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:11.32 in
Frame Length:5.50 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1 Only
