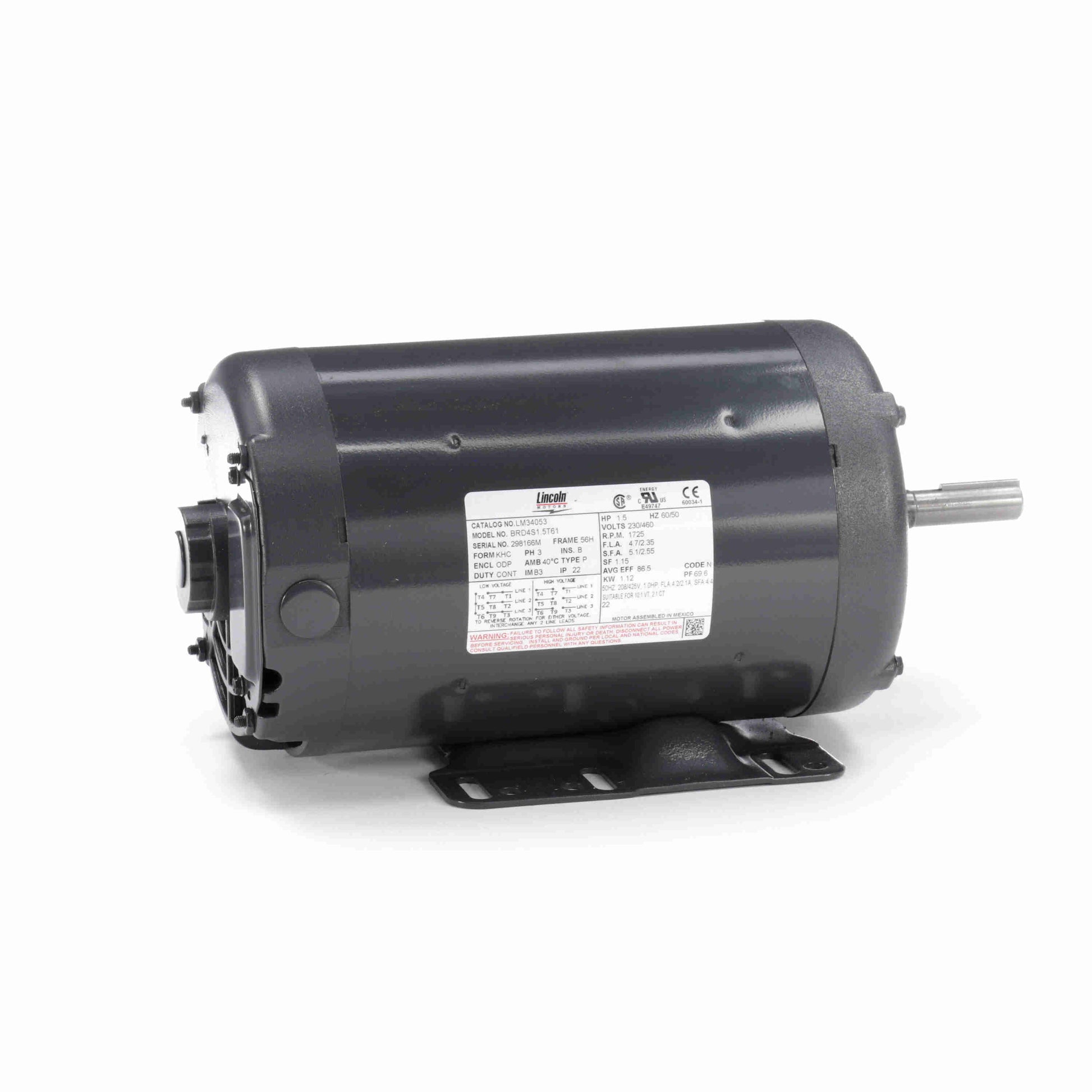

Leeson Electric LM34064, 1 HP, 3600 RPM, 56 FR, 575 Vac, 3 PH, DP, Rigid Base, General Purpose.

LM34064, 1 HP, 3600 RPM, 56 FR, 575 Vac, 3 PH, DP, Rigid Base, General Purpose.

Engineering Data

Output HP:1 Hp
Output KW:0.75 kW
Frequency:60 Hz
Voltage:575 V
Current:1.2 A
Speed:3450 rpm
Service Factor:1
Phase:3
Efficiency:77 %
Power Factor:64.3
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:M
Frame:56
Enclosure:Drip Proof
Thermal Protection:No
Ambient Temperature:50 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:Y
IP Code:22
Technical Specifications
Electrical Type:Squirrel Cage Inverter Rated
Starting Method:Line Or Inverter
Poles:2
Rotation:Reversible
Resistance Main:0 Ohms
Mounting:Rigid base
Motor Orientation:HORIZONTAL
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Shaft Type:T
Overall Length:11.43 in
Frame Length:6.94 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1 Only
