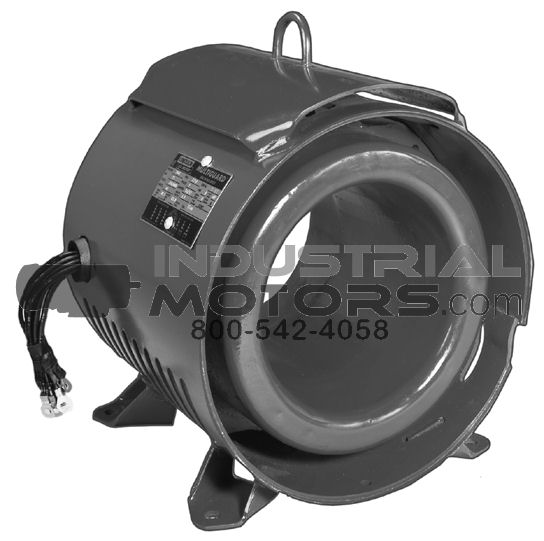

LM03614, 15 HP, 1200 RPM, 284T FR, DP, 230/460 Vac, 3 PH, Rigid Base, Encapsulated Multiguard

** This motor has been replaced by Model# LM34358**

LM03614, 15 HP, 1200 RPM, 284T FR, DP, 230/460 Vac, 3 PH, Rigid Base, Encapsulated Multiguard.

Engineering Data
Volts 230 Volts 460 Volts
F.L. Amps 43 F.L. Amps 21.5 F.L. Amps
S. F Amps S. F Amps S. F Amps

RPM 1200 Hertz 60
HP 15 Duty CONTINUOUS TYPE TDR
KW 11.2
Frame 284T Serv. Factor 1.0 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 86.5 Eff 75% PF 76
UL NONE CSA Yes Bearing OPE 209
CC Number CE No Bearing PE 310
Load Type Inverter Type Speed Range NONE

Motor Wt. 280 LB Enclosure DP Lubrication VERIFY
Nameplate Mounting RIGID Rotation REV
Assembly Shaft Dia. Ext. Diag. A-EE7308AA-LN
Cust Part No Outline XF1D1SS1-1298 Ext. Diag2
Packaging B Outline Dash No Winding 6D284003
Carton Label GROUP : 1
Iris Paint GRAY - LINCOLN Test Card

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

Rework Status Rework TYPE

Hazardous Loc NONE Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP : VDC
Class GROUP : ADC
Brake Coil OHMs @25 C

Performance
Torque UOM Inertia (WK²)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor

Load Curve Data @60 Hz , NONE Volts , 15 Horsepower
Load Amps KW2 RPM Torque EFF PF Rise By Resis Frame Rise
0.0 11.0 0.75 1200 0.0 0.0 7.0 0.0 -
0.25 11.8 3.6 1192 16.5 78.0 37.0 0.0 -
0.5 14.0 6.5 1185 33.5 85.5 58.0 0.0 -
0.75 17.0 9.6 1175 50.5 87.5 70.0 0.0 -
1.0 21.5 13.0 1168 67.5 86.5 76.0 85.0 -
1.15 24.0 15.0 1162 78.0 86.5 78.0 115.0 -
1.25 26.0 16.5 1155 85.5 85.5 79.0 0.0 -
