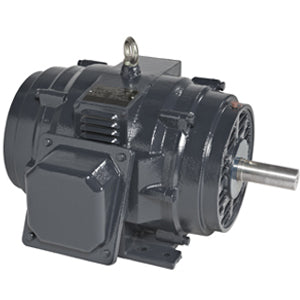

LM24190, 15 HP, 1800 RPM, 254T FR, DP, 230/460 Vac, 3 PH, Rigid Base, General Purpose

Engineering Data
Volts 230 Volts 460 Volts 190-208/380-415
F.L. Amps 37 F.L. Amps 18.5 F.L. Amps 44-42/22-21
S. F Amps 45 S. F Amps 22.6 S. F Amps 50-47.5/25-23.8

--------------------------------------------------------------------------------

RPM 1800 Hertz 60/50
HP 15 Duty CONTINUOUS TYPE TDS
KW 11.19
Frame 254T Serv. Factor 1.25 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 93 Eff 75% PF 82
UL V-INS, CONST UL REC CSA Yes Bearing OPE 208
CC Number CC004A CE Yes Bearing PE 309
Load Type Inverter Type NONE Speed Range NONE

--------------------------------------------------------------------------------

Motor Wt. 360 LB Enclosure DP Lubrication STANDARD
Nameplate Mounting RIGID Rotation REV
Assembly Shaft Dia. Ext. Diag. A-EE7308-LN
Cust Part No Outline B-SS203365LN-1275 Ext. Diag2
Packaging B Outline Dash No Winding K2544149
Carton Label GROUP: 1
Iris Paint LINCOLN GRAY Test Card

--------------------------------------------------------------------------------

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

--------------------------------------------------------------------------------

Rework Status Rework TYPE

--------------------------------------------------------------------------------

Hazardous Loc NONE Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
Brake Coil OHMs @25 C
Performance
Torque UOM Inertia (WK²)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor
Load Curve Data @60/50 Hz, 460 Volts, 15 Horsepower
Load Amps KW RPM Torque Eff PF Rise By Resis Frame Rise
0.0 7.5 0.3 1800 0.0 0.0 4.0 0.0 -
0.25 9.0 3.1 1795 11.0 90.2 44.5 0.0 -
0.5 11.5 6.0 1785 22.0 93.0 67.0 0.0 -
0.75 14.5 9.0 1780 33.0 93.6 77.0 0.0 -
1.0 18.5 12.0 1775 44.5 93.0 82.0 25.0 -
1.15 21.0 14.0 1770 51.0 92.4 83.5 35.0 -
1.25 22.6 15.1 1765 55.5 92.0 84.0 45.0 -
