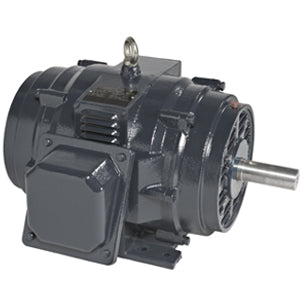

LM24199, 20 HP, 1800 RPM, 256T FR, DP, 230/460 Vac, 1 PH, Rigid Base, General Purpose

Engineering Data
Volts 230 Volts 460 Volts 190-208/380-415
F.L. Amps 48 F.L. Amps 24 F.L. Amps 59-55/29.5-27.5
S. F Amps 60 S. F Amps 30 S. F Amps 67.5-63/34-31.5

--------------------------------------------------------------------------------

RPM 1800 Hertz 60/50
HP 20 Duty CONTINUOUS TYPE TDS
KW 14.9
Frame 256T Serv. Factor 1.25 Phase 3
Max Amb 40 Design B Code F
Insul Class F Protection NOT Therm.Prot.
Eff 100% 93 Eff 75% PF 82.5
UL V-INS, CONST UL REC CSA Yes Bearing OPE 6208
CC Number CC004A CE Yes Bearing PE 6309
Load Type Inverter Type Speed Range NONE

--------------------------------------------------------------------------------

Motor Wt. 354 LB Enclosure DP Lubrication STANDARD
Nameplate Mounting RIGID Rotation REV
Assembly Shaft Dia. Ext. Diag. A-EE7308-LN
Cust Part No Outline B-SS203365LN-1425 Ext. Diag2
Packaging B Outline Dash No Winding K2564317
Carton Label GROUP: 1
Iris Paint LINCOLN GRAY Test Card

--------------------------------------------------------------------------------

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

--------------------------------------------------------------------------------

Rework Status Rework TYPE

--------------------------------------------------------------------------------

Hazardous Loc NONE Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
Brake Coil OHMs @25 C
Performance
Torque UOM Inertia (WK²)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor
Load Curve Data @60/50 Hz, 460 Volts, 20 Horsepower
Load Amps KW RPM Torque Eff PF Rise By Resis Frame Rise
0.0 9.5 0.5 1800 0.0 0.0 5.5 0.0 -
0.25 11.0 4.0 1795 14.5 88.5 47.0 0.0 -
0.5 14.5 8.0 1788 29.5 92.4 69.0 0.0 -
0.75 19.0 12.0 1780 44.0 93.0 78.5 0.0 -
1.0 24.0 16.0 1775 59.0 93.0 82.5 25.0 -
1.15 27.5 19.0 1765 68.5 92.4 84.0 30.0 -
1.25 30.0 20.5 1760 74.5 91.7 84.5 37.0 -
