Industrial Motors

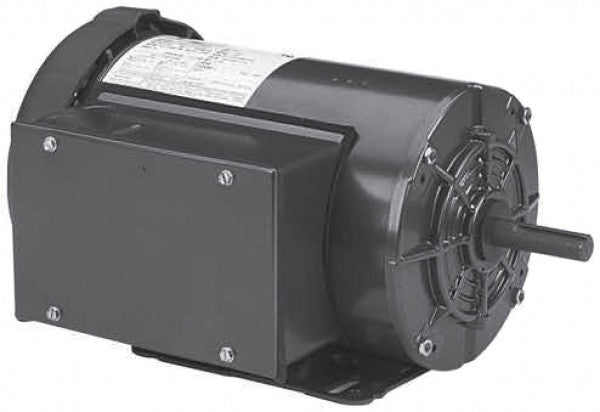

LM24531, 1 1/2 HP, 3600 RPM, 56H FR, TEFC, 115/208-230 VAC, 1 PH, Rigid Base, General Purpose

LM24531, 1 1/2 HP, 3600 RPM, 56H FR, TEFC, 115/208-230 VAC, 1 PH, Rigid Base, General Purpose

$454.68
$842.00 $454.68
Sale Sold out
Shipping calculated at checkout.

LM24531, 1 1/2 HP, 3600 RPM, 56H FR, TEFC, 115/208-230 VAC, 1 PH, Rigid Base, General Purpose.

Engineering Data

Volts
115

Volts
208-230

Volts


FL Amps
14.2

FL Amps
7.7-7.1

FL Amps


SF Amps
16

SF Amps
8.8-8

SF Amps



RPM
3600

Hertz
60




HP
1 1/2

Duty
CONTINUOUS

Type
B

KW
1.12

SF
1.15

Phase
1

Frame
56HZ

Design
NO DESIGN CODE

KVA Code
H

Ambient
40

Protection
NOT

Therm.Prot.


Insulation Class
B

Eff(75%)


PF
87.5

Eff(100%)
78.5

CSA
Y

Bearing OPE


UL
V-INS, CONST UL REC

CE


Bearing PE


CC Number


Inverter Type


Speed Range
NONE

LOad Type




Motor Wt.
35 LB

Enclosure
TEFC

Lubrication
VERIFY

Nameplate


Mounting
RIGID

Rotation
SELECTIVE CCW

Shaft Diam.
5/8 IN

Cust Part No.


Packaging
B




Winding
ZB216

Carton Label





Group
3

Iris


Paint
VERIFY

Hazardous Location
NONE
