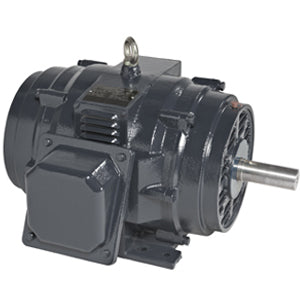

LM29576, 25 HP, 1800 RPM, 284T FR, DP, 230/460 Vac, 3 PH, Rigid Base, General Purpose

Engineering Data
Volts 230 Volts 460 Volts 200/400
F.L. Amps 64 F.L. Amps 32 F.L. Amps 74/37
S. F Amps 78 S. F Amps 39 S. F Amps 83/41.5

--------------------------------------------------------------------------------

RPM 1800 Hertz 60/50
HP 25 Duty CONTINUOUS TYPE TDS
KW 18.7
Frame 284T Serv. Factor 1.25 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 93.6 Eff 75% PF 78
UL NONE CSA Yes Bearing OPE 6210
CC Number CC004A CE Yes Bearing PE 6311
Load Type Inverter Type Speed Range NONE

--------------------------------------------------------------------------------

Motor Wt. 435 LB Enclosure DP Lubrication STANDARD
Nameplate 92117-EZ-X-CDLM-B-A-X Mounting RIGID Rotation REV
Assembly Shaft Dia. Ext. Diag. A-EE7358-LN
Cust Part No Outline B-SS207470LN-1325 Ext. Diag2
Packaging B Outline Dash No Winding K2844143
Carton Label GROUP: 6
Iris Paint LINCOLN GRAY Test Card

--------------------------------------------------------------------------------

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

--------------------------------------------------------------------------------

Rework Status Rework TYPE

--------------------------------------------------------------------------------

Hazardous Loc NONE Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
Brake Coil OHMs @25 C
Performance
Torque UOM Inertia (WK²)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor
Load Curve Data @60/50 Hz, 460 Volts, 25 Horsepower
Load Amps KW RPM Torque Eff PF Rise By Resis Frame Rise
0.0 15.5 0.75 1800 0.0 0.0 4.5 0.0 -
0.25 17.0 5.5 1795 18.5 88.5 39.0 0.0 -
0.5 21.0 10.0 1788 37.0 92.4 60.0 0.0 -
0.75 26.0 15.0 1782 55.5 93.6 72.0 0.0 -
1.0 32.0 20.0 1775 74.0 93.6 78.0 45.0 -
1.15 36.0 23.0 1770 85.0 93.6 80.0 60.0 -
1.25 39.0 25.0 1765 93.0 93.0 81.0 0.0
