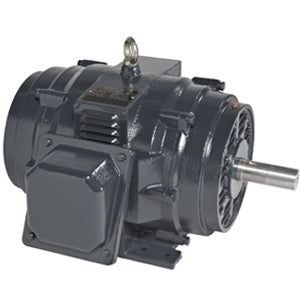

Leeson Electric LM32749, 30 HP, 1800 RPM, 286TS FR, DP, 230/460 Vac, 3 PH, Rigid Base, General Purpose

Engineering Data
Volts 230 Volts 460 Volts 190/380
F.L. Amps 73 F.L. Amps 36.5 F.L. Amps 75/37.5
S. F Amps 90 S. F Amps 45 S. F Amps

--------------------------------------------------------------------------------

RPM 1800 Hertz 60/50
HP 30 Duty CONTINUOUS TYPE TDS
KW 22.4
Frame 286TS Serv. Factor 1.25 Phase 3
Max Amb 40 Design B Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 94.1 Eff 75% PF 81
UL V-INS, CONST UL REC CSA Yes Bearing OPE 6210
CC Number CC004A CE Yes Bearing PE 6311
Load Type Inverter Type Speed Range NONE

--------------------------------------------------------------------------------

Motor Wt. 423 LB Enclosure DP Lubrication STANDARD
Nameplate 92117 Mounting RIGID Rotation REV
Assembly Shaft Dia. Ext. Diag. A-EE7358-LN
Cust Part No Outline B-SS207911LN-1512 Ext. Diag2
Packaging B Outline Dash No Winding K2864262
Carton Label GROUP: 1
Iris Paint LINCOLN GRAY Test Card

--------------------------------------------------------------------------------

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

--------------------------------------------------------------------------------

Rework Status Rework TYPE

--------------------------------------------------------------------------------

Hazardous Loc NONE Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
Brake Coil OHMs @25 C
Performance
Torque UOM Inertia (WK²)
Torque
CURRENT (amps)
Efficiency (%)
PowerFactor
Load Curve Data @60/50 Hz, 460 Volts, 30 Horsepower
Load Amps KW RPM Torque Eff PF Rise By Resis Frame Rise
0.0 15.5 0.75 1800 0.0 0.0 4.0 0.0 -
0.25 17.5 6.2 1795 22.0 91.0 44.0 0.0 -
0.5 22.5 12.0 1785 44.0 93.6 66.5 0.0 -
0.75 29.0 17.8 1780 66.5 94.1 77.0 0.0 -
1.0 36.5 23.8 1775 89.0 94.1 81.0 25.0 -
1.15 41.5 27.5 1770 100.0 93.6 82.5 35.0 -
1.25 45.0 30.0 1765 112.0 93.0 83.0 45.0 -
