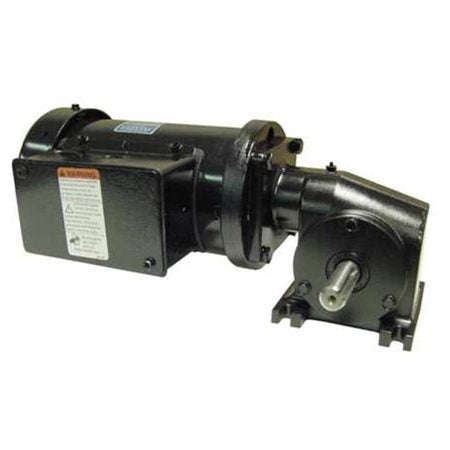

Leeson Electric M1145127.00, 3/8 Hp, 29 Rpm, 60:1, 238 Lb-in, 230 Vac, 3 Ph, TEFC, Inverter Rated, Right Angle AC Gearmotor

M1145127.00, 3/8 Hp, 29 Rpm, 60:1, 238 Lb-in, 230 Vac, 3 Ph, TEFC, Inverter Rated, Right Angle AC Gearmotor.

Engineering Data

RPM 29/24 Volts 190 Volts 208-230
HPKW .375/.375 F.L. Amps 1.6 F.L. Amps 1.4-1.3
Frame 38 S. F Amps S. F Amps
Max Amb 40 Hertz Phase 3
Insul Class F4 Duty CONT TYPE TF
Serv. Factor 1.0/1.0 PF
Eff 100% Eff 75% Enclosure TEFC
Protection NOT Therm.Prot. Bearing OPE 6201-13
Design Code G Bearing PE 6201-13
UL Yes CSA Yes CE No
Nameplate 081188 Lubrication
Series 13 Overrlung Ld. 235 Shaft Type RIGHT-ANGLE

Motor Wt. 18 LB Mounting SPECIAL Rotation RECONN
Carton Label Subfrac Individual Assembly M1040956
Winding MT38432 Shaft Dia. 5/8 Ext. Diag2
GROUP: 1 D Paint M1305027.01 Packaging M1307027.01
Test Card 01 Outline M1030994 Cust Part No

Form Factor RMS Amps
Torque RMS Amps
AB Code Peak
Resistance Peak@DegC
Connection Const Torque Speed Range

Rework Status Rework TYPE

Explosion Proof Brake Motors
Temp Op Code FORCE
Class GROUP: VDC
Class GROUP: ADC
Brake Coil OHMs @25 C
