Industrial Motors

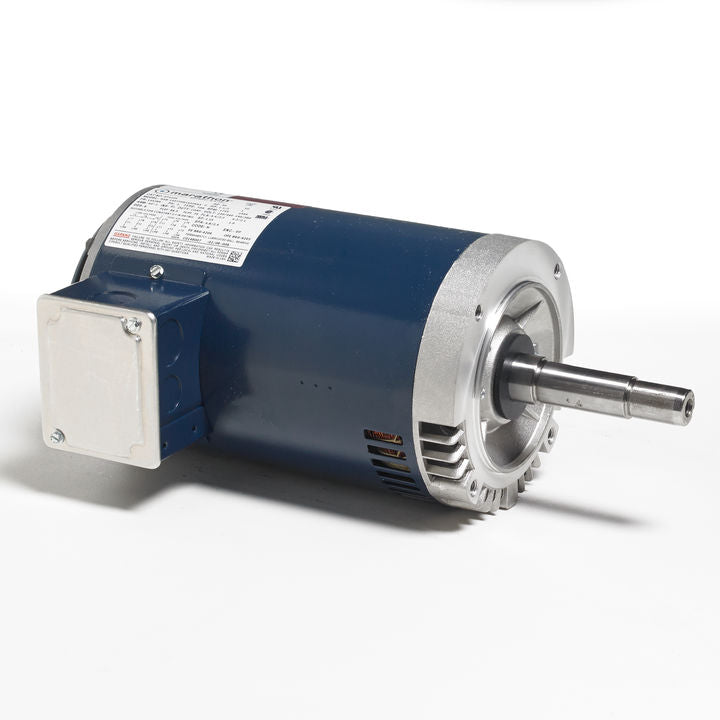

Marathon Electric M302, 1 HP, 1800 Rpm, 143JMV FR, 208-230/460 Vac, 3 PH, Dripproof, C-Face Footless, Close-Coupled Pump, JM, 143TTDR5334

Marathon Electric M302, 1 HP, 1800 Rpm, 143JMV FR, 208-230/460 Vac, 3 PH, Dripproof, C-Face Footless, Close-Coupled Pump, JM, 143TTDR5334

$301.00
$301.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$301.00 $285.95
Sale

**This motor has been replaced by Model# GT4101**
M302, 1 HP, 1800 Rpm, 143JMV FR, 208-230/460 Vac, 3 PH, Dripproof, C-Face Footless, Close-Coupled Pump, JM, 143TTDR5334

General Specifications

Model :
143TTDR5334
Catalog No :
M302
Part Description :
1,1800,DP,143JMV,3/60/230/460
Category :
JM
Stock :
No
Nameplate Specifications

Output HP :
1 Hp
Output KW :
0.75 kW
Frequency :
60 Hz
Voltage :
230/460 V
Current :
3.6/1.8 A
Speed :
1730 rpm
Service Factor :
1.15
Phase :
3
Efficiency :
77 %
Duty :
CONTINUOUS
Insulation Class :
B
Design Code :
B
KVA Code :
L
Frame :
143JMV
Enclosure :
DP
Overload Protector :
NOT
Ambient Temperature :
40 °C
Drive End Bearing Size :
6206
Opp Drive End Bearing Size :
6203
UL :
Recognized
CSA :
Y
CE :
Y
IP Code :
22
