M3116T, 1 Hp, 1800 Rpm, 143T FR, 230/460 Vac, 3 PH, ODP, Foot Mounted, General Purpose Motor

** This motor has been replaced by Model# EM3116T**
M3116T, 1 Hp, 1800 Rpm, 143T FR, 230/460 Vac, 3 PH, ODP, Foot Mounted, General Purpose Motor.

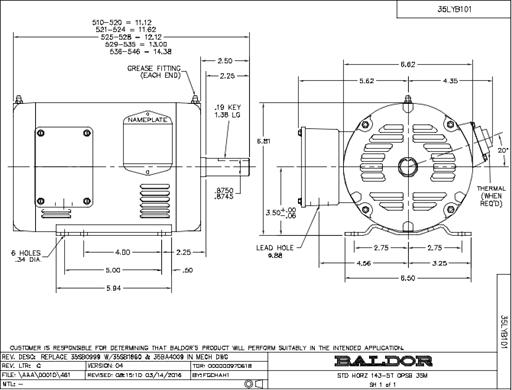

Engineering Data

Enclosure ODP

Frame 143T

Frame Material Steel

Frequency 60 Hz

Output @ Frequency 1.000 HP @ 60 HZ

Phase 3

Synchronous Speed @ Frequency 1800 RPM @ 60 HZ

Voltage @ Freqeuncy 208.0 V @ 60 HZ
230.0 V @ 60 HZ
460.0 V @ 60 HZ

XP Division Not Applicable

Agency Approvals CSA
UR

Ambient Temperature 40 °C

Auxillary Box No Auxillary Box

Auxillary Box Lead Termination None

Base Indicator Rigid

Bearing Grease Type Polyrex EM (-20F +300F)

Blower None

Current @ Voltage 3.380 A @ 208.0 V
3.120 A @ 230.0 V
1.560 A @ 460.0 V

Design Code B

Drip Cover No Drip Cover

Duty Rating CONT

Efficiency @ 100% Load 82.5 %

Electrically Isolated Bearing Not Electrically Isolated

Feedback Device No Feedback

High Voltage Full Load Amps 1.6 a

Front Face Code Standard

Front Shaft Indicator None

Heater Indicator No Heater

Insulation Class B

Inverter Code Not Inverter

KVA Code M

Lifting Lugs No Lifting Lugs

Locked Bearing Indicator No Locked Bearing

Motor Lead Exit Ko Box

Motor Lead Termination Flying Leads

Motor Lead Quantity/Wire Size 9 @ 18 AWG

Motor Type 3516M

Mounting Arrangement F1

Number of Poles 4

Overall Length 11.12 IN

Power Factor 73

Product Family General Purpose

Pulley End Bearing Type Ball

Pulley Face Code Standard

Pulley Shaft Indicator Standard

Rodent Screen None

Service Factor 1.15

Shaft Diameter 0.875 IN

Shaft Extension Location Pulley End

Shaft Ground Indicator No Shaft Grounding

Shaft Rotation Reversible

Shaft Slinger Indicator No Slinger

Speed 1750 rpm

Speed Code Single Speed

Motor Standards NEMA

Starting Method Direct on line

Thermal Device - Bearing None

Thermal Device - Winding None

Vibration Sensor Indicator No Vibration Sensor

Winding Thermal 1 None

Winding Thermal 2 None
