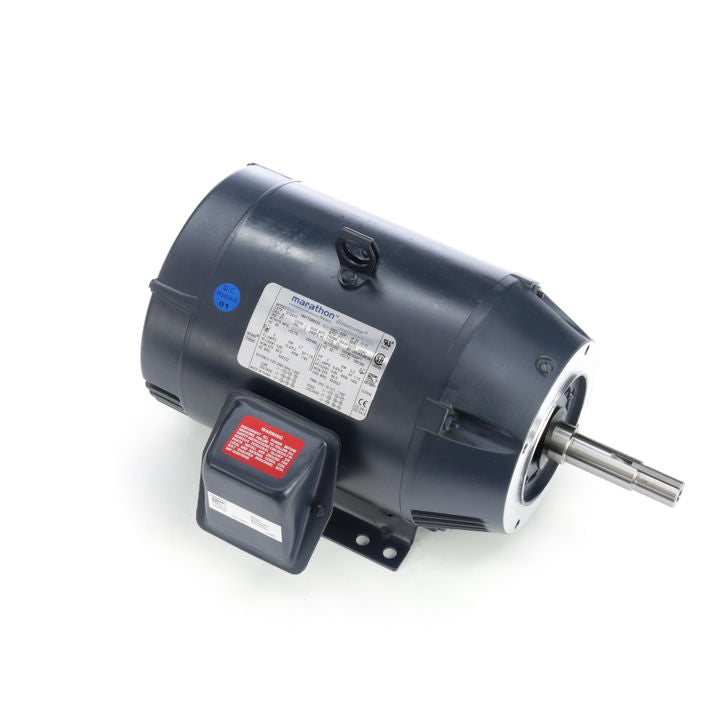

Marathon Electric M317, 184TTDB7357, 5 Hp, 1800 Rpm, 182JM FR, 208-230/460 Vac, 3 PH, Dripproof, C-Face Footed, Close-Coupled Pump, JM

**This motor has been replaced by Model# GT0413*
M317, 184TTDB7357, 5 Hp, 1800 Rpm, 182JM FR, 208-230/460 Vac, 3 PH, Dripproof, C-Face Footed, Close-Coupled Pump, JM

Engineering Data

Nameplate - 60 HZ
Hertz 60
HP 5
KW 3.70
RPM 1800
FL Eff 86.5
Volts 208-230/460
FL Amps 14.4-13.6/6.8
SF 1.15

Nameplate - 50 HZ

Hertz 50
HP 3
KW 2.24
RPM 1500
FL Eff 87.5
Volts 190/380
FL Amps 10.4/5.2
SF 1.15
Motor Wt.
58 LB

UL
Recognized Construction

CE Y
CSA Y
Phase 3
Insulation Class B
Frame Size 184JM
Enclosure DP
Ambient 40
Mount Type C-Face Rigid
Therm.Prot. NOT
Orientation HORIZONTAL
Nema Design B
Assembly F1 ONLY

Starting Method
ACROSS THE LINE

PE Bearing Type
BALL

KVA Code
J

OPE Bearing Type
BALL

IP Code
22

Drive End Bearing Size
6307

Opposite End Bearing Size
6205
