Industrial Motors

Marathon Electric M321, 213TTDBA7047, 7 1/2 Hp, 1800 Rpm, 213JM FR, 208-230/460 Vac, 3 PH, Dripproof, C-Face Footed, Close-Coupled Pump, JM

Marathon Electric M321, 213TTDBA7047, 7 1/2 Hp, 1800 Rpm, 213JM FR, 208-230/460 Vac, 3 PH, Dripproof, C-Face Footed, Close-Coupled Pump, JM

$1,669.00
$1,669.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,669.00 $1,585.55
Sale

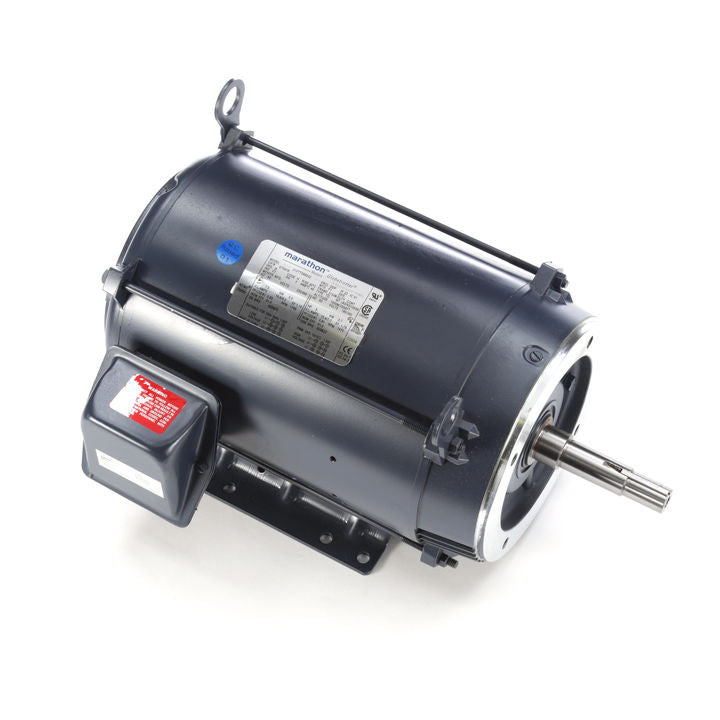

**This motor has been replaced by Model# GT0416A**
M321, 213TTDBA7047, 7 1/2 Hp, 1800 Rpm, 213JM FR, 208-230/460 Vac, 3 PH, Dripproof, C-Face Footed, Close-Coupled Pump, JM.

Engineering Data

60 Hertz
HP 7 1/2 Voltage 208-230/460
kW 5.595 FL Amps 22-20.4/10.2
RPM 1800
FL Eff 87.5 % SF 1.15
50 Hertz
HP 5 Voltage 190/380
kW 3.73 FL Amps 17/8.5
RPM 1500
FL Eff 88.5 % SF 1.15


Phase 3 Insulation Class B
Frame 213JM Duty CONTINUOUS
Enclosure DP Ambient 40
Mounting C-Face Rigid NEMA Design B
Orientation HORIZONTAL Starting Type ACROSS THE LINE
Assembly F1 (F2 Modification Available) KVA Code G
Drive End Bearing NONE IP Code 22
Opposite End Bearing NONE
Drive End Bearing Size 309
Opposite End Bearing Size 206
Weight 100 LB lbs
CE N/A CSA Y
UL Recognized Construction
