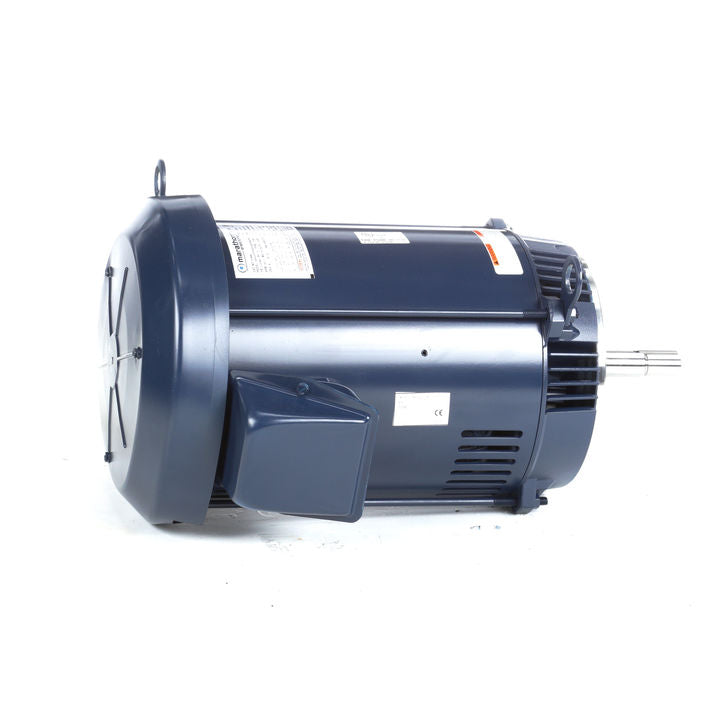

Marathon Electric M322, 7 1/2 Hp, 1800 Rpm, 213JMV FR, 3 PH, Dripproof, C-face Footless, Close-Coupled Pump, JM, 213TTDW7048

**This motor has been replaced by Model# E168A**
M322, 7 1/2 Hp, 1800 Rpm, 213JMV FR, 3 PH, Dripproof, C-face Footless, Close-Coupled Pump, JM, 213TTDW7048.

General Specifications

Model : 213TTDW7048Catalog No : M322Part Description : 7-1/2,1800,DP,213JMV,3/60/208-230/460Category : Other PurposeStock : No
Nameplate Specifications
Output HP : 7.5 HpOutput KW : 5.60 kWFrequency : 60 HzVoltage : 208-230/460 VCurrent : 22-21.6/10.8 ASpeed : 1745 rpmService Factor : 1.15 Phase : 3 Efficiency : 84 %Duty : CONTINUOUS Insulation Class : B Design Code : B KVA Code : H Frame : 213JMV Enclosure : DP Overload Protector : NOT Ambient Temperature : 40 °CDrive End Bearing Size : 6309 Opp Drive End Bearing Size : 6206 UL : Recognized CSA : Y CE : Y IP Code : 22
Technical Specifications
Electrical Type : SQ CAGE IND RUN Starting Method : ACROSS THE LINE Poles : 4 Rotation : REV Mounting : ROUND Motor Orientation : SHAFT DOWN Drive End Bearing : BALL Opp Drive End Bearing : BALL Frame Material : ROLLED STEEL Shaft Type : JM Overall Length : 18.94 inFrame Length : 9.65 inShaft Diameter : .88 inShaft Extension : 4.28 inAssembly/Box Mounting : F1/F2 CAPABLE Weight : 88.00 LB
