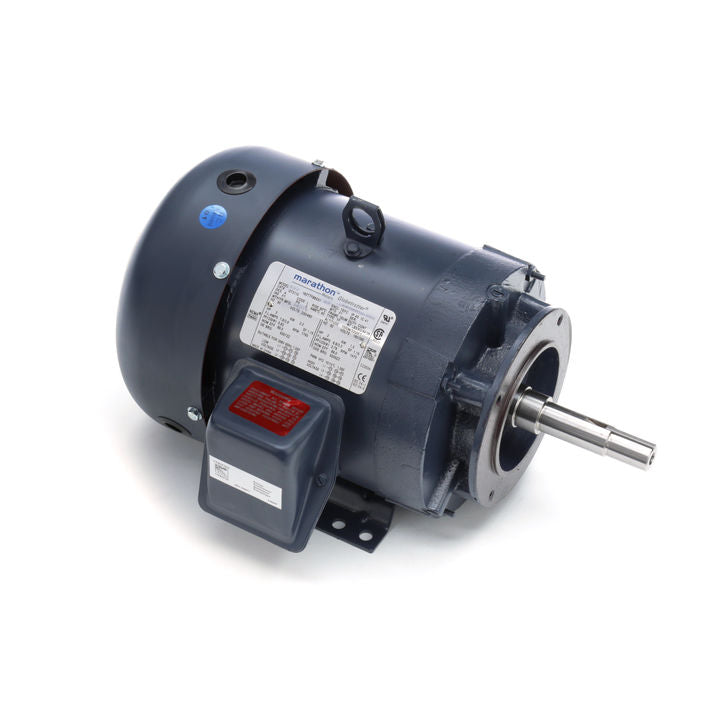

Marathon Electric M422, 3 HP, 1800 Rpm, 182JM FR, 208-230/460 Vac, 3 PH, Totally Enclosed, C-Face Footed, Close-Coupled Pump, JM, 182TTFR5330

**This motor has been replaced by Model# GT3110**
M422, 3 HP, 1800 Rpm, 182JM FR, 208-230/460 Vac, 3 PH, Totally Enclosed, C-Face Footed, Close-Coupled Pump, JM, 182TTFR5330.

Engineering Data

Nameplate - 60 HZ

Hertz 60 HP 3
KW 2.24 RPM 1800
FL Eff 84 Volts 208-230/460
FL Amps 9.2-8.6/4.3 SF 1.15

Nameplate - 50 HZ

Hertz 50 HP 2
KW 1.49 RPM 1500
FL Eff 84 Volts 190/380
FL Amps 7.2/3.6 SF 1.15

Motor Wt. 58 LB UL N
CE Y CSA Y

Phase 3 Insulation Class F
Frame Size 182JM Enclosure TEFC
Ambient 40 Mount Type C-Face Rigid
Therm.Prot. NOT Orientation HORIZONTAL
Nema Design B Assembly F1 (F2 Modification Available)
Starting Method ACROSS THE LINE PE Bearing Type BALL
KVA Code K OPE Bearing Type BALL
IP Code 43 Drive End Bearing Size 6207
Opposite End Bearing Size 6203
