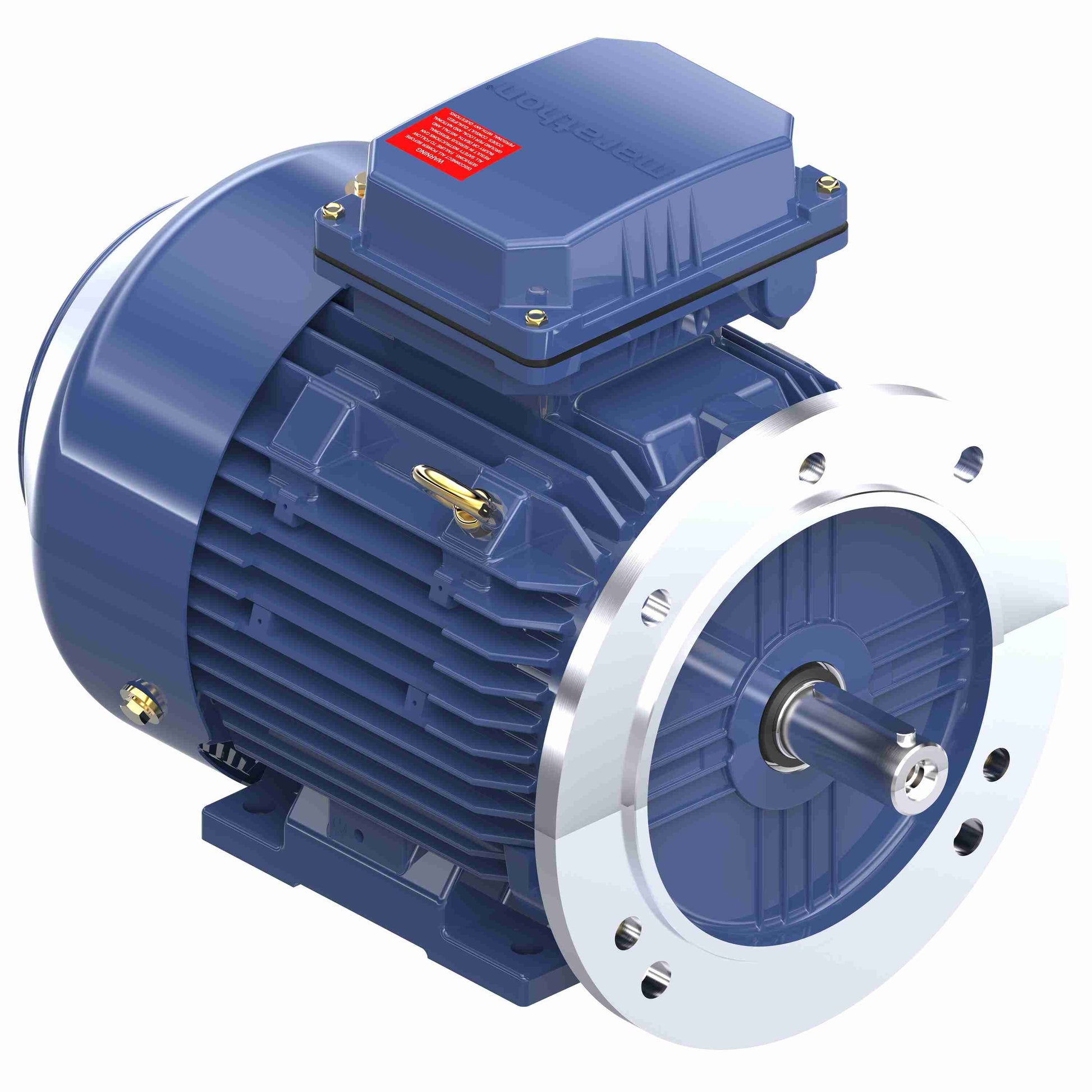

Marathon Electric R822, 3 Hp- 2.2 Kw, 1800 Rpm, DF100LD FR, TEFC, 230/460 Vac, 3 PH, Rigid Base, B5 Flange, AC Metric Motor

R822, 3 Hp- 2.2 Kw, 1800 Rpm, DF100LD FR, TEFC, 230/460 Vac, 3 PH, Rigid Base, B3/B5 Flange, AC Metric Motor.

Engineering Data
Volts 230 Volts 460 Volts 200/400
F.L. Amps 8 F.L. Amps 4 F.L. Amps 6.6/3.3
S. F Amps 8.8 S. F Amps 4.4 S. F Amps 7/3.5

RPM 1800 Hertz 60/50
HP 3 Duty CONTINUOUS TYPE TF
KW 2.24
Frame 100L Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 90.2 Eff 75% PF 79.2
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6205
CC Number CC005A CE Yes Bearing PE 6206
Load Type Inverter Type Speed Range NONE

Motor Wt. 84 LB Enclosure TEFC Lubrication VERIFY
Nameplate 622231 Mounting RIGID Rotation REV
Assembly Shaft Dia. Ext. Diag. 005533-01
Cust Part No Outline B-SS622286 Ext. Diag2
Packaging B Outline Dash No Winding T08704010
Carton Label GROUP : 3
Iris Paint VERIFY Test Card
