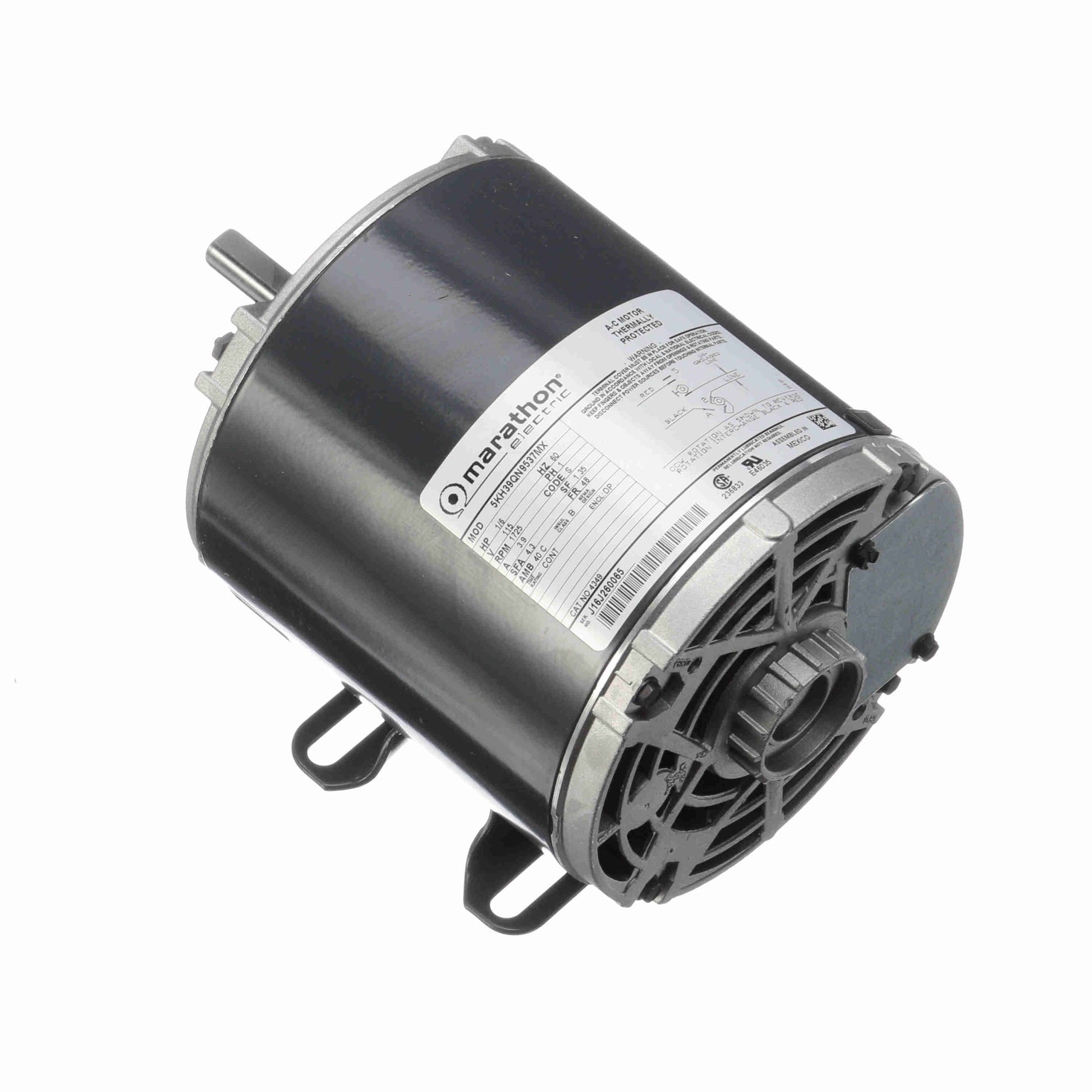

Marathon Electric 4349, 1/6 Hp, 1800 Rpm, 48 FR, 115 V, 1 PH, Dripproof, Rigid Base, General Purpose, 5KH39QN9537X.

4349, 1/6 Hp, 1800 Rpm, 48 FR, 115 V, 1 PH, Dripproof, Rigid Base, General Purpose, 5KH39QN9537X.

Engineering Data

General Specifications

Nameplate Specifications
Output HP : 0.17 Hp
Output KW : 0.13 KW
Frequency : 60 Hz
Voltage : 115 V
Current : 3.9 A
Speed : 1725 rpm
Service Factor : 1.35 Phases : 1
Efficiency : 48.5 %
Duty : CONT Insulation Class : B
KVA Code : S
Frame : 48
Enclosure : DP
Overload Protector : AUTO
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes CE : N

Technical Specifications

Electrical Type : Split Phase
Starting Method : SM
Poles : 4
Rotation : CCW/CW
Mounting : WB
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 8.9 in
Frame Length : 5.16 in
Shaft Diameter : 0.5 in
Shaft Extension : 1.5 in
UPC : 722856006233
Weight : 12.00 LB
