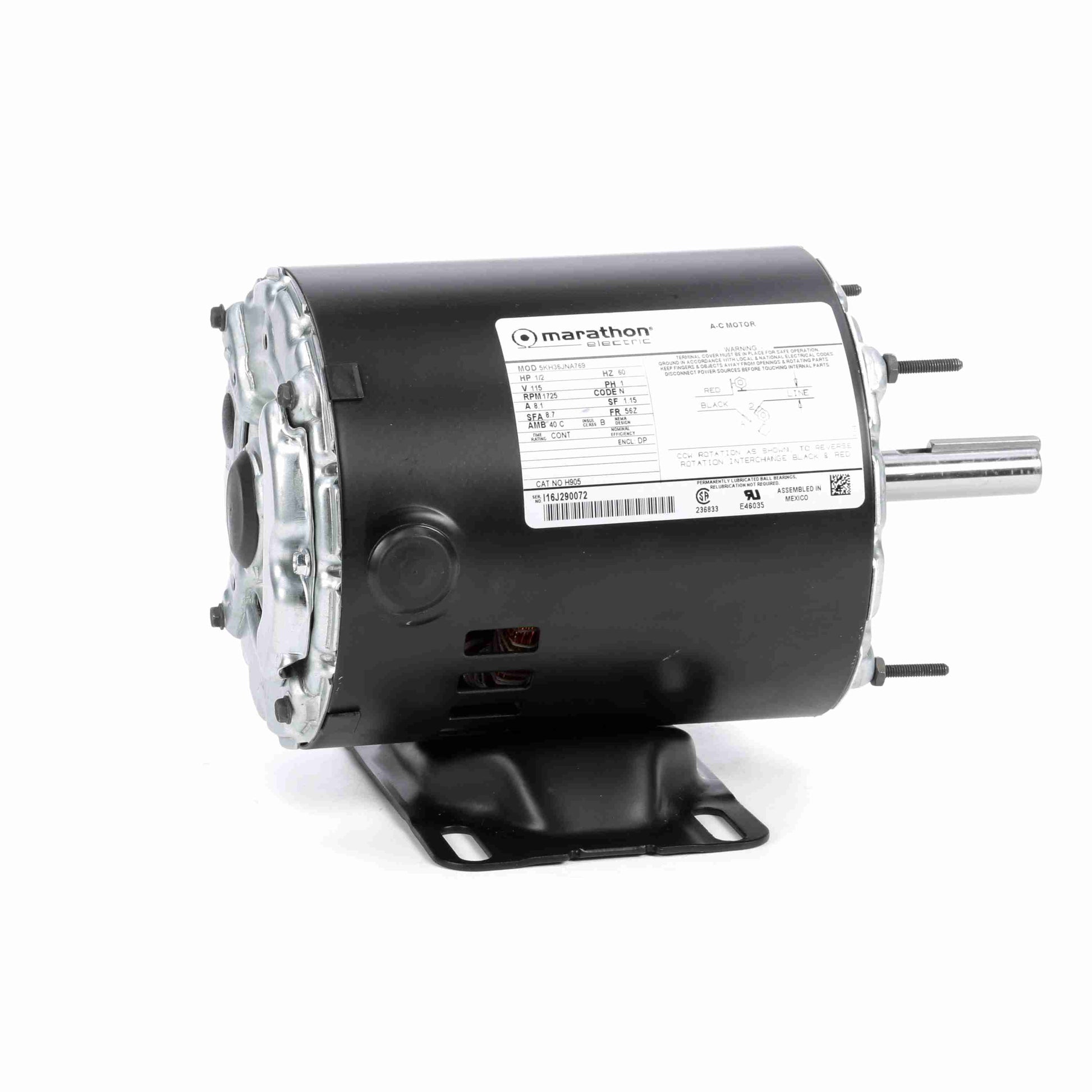

Marathon Electric 4351, 5KH39QN9542, 1/4 Hp, 1800 Rpm, 48 FR, 115V, 1 PH, Dripproof, Rigid Base, Special Purpose

Marathon Electric 4351, 5KH39QN9542, 1/4 Hp, 1800 Rpm, 48 FR, 115V, 1 PH, Dripproof, Rigid Base, Special Purpose

General Specifications

Model : 5KH39QN9542
Catalog No : 4351
Part Description : 1/4,1725,DP,48,1/60/115
Category : Open
Drip Proof (ODP)
Stock : Yes

Nameplate Specifications

Output HP : 0.25 Hp
Output KW : 0.19 kW
Frequency : 60 Hz
Voltage : 115 VCurrent : 5.7 A
Speed : 1725 rpm
Service Factor : 1
Phases : 1
Efficiency : 52.8 %
Duty : CONT
Insulation Class : B
KVA Code : S
Frame : 48
Enclosure : DP
Overload Protector : N/R
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes
CE : N

Technical Specifications

Electrical Type : Split Phase
Starting Method : SM
Poles : 4
Rotation : CCW/CW
Mounting : WB
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 8.9 in
Frame Length : 5.16 in
Shaft Diameter : 0.5 in
Shaft Extension : 1.5 in
UPC : 722856006929
Weight : 13.00 LB
