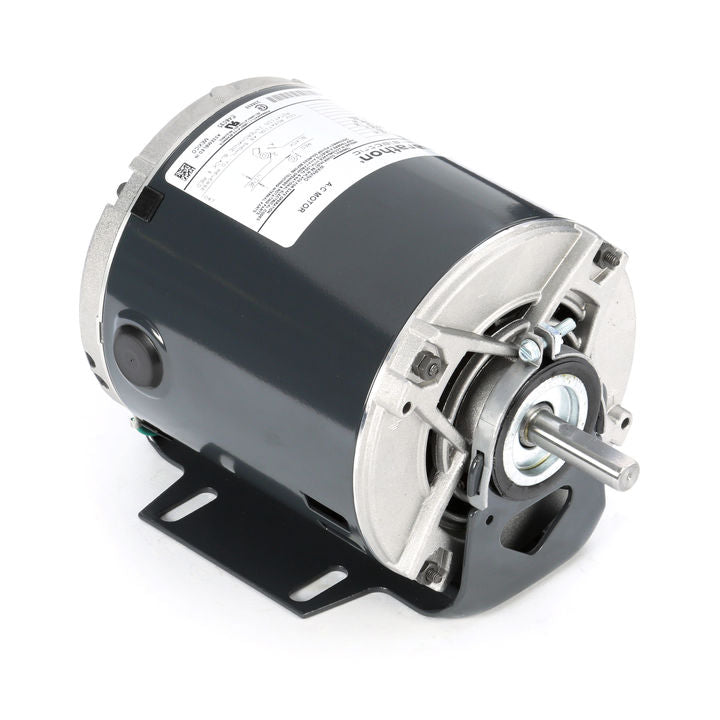

Marathon Electric 4355, 1/4 Hp, 1725 Rpm, 48 FR, 115 Vac, 1 PH, Dripproof, Resilient Base, Fan and Blower, 5KH39QN5225

4355, 1/4 Hp, 1725 Rpm, 48 FR, 115 Vac, 1 PH, Dripproof, Resilient Base, Fan and Blower, 5KH39QN5225

General Specifications

Model : 5KH39QN5525
Catalog No : 4355
Part Description : 1/4,1725,DP,48,1/60/115
Category : Fan and Blower
Stock : Yes

Nameplate Specifications

Output HP : 0.25 Hp
Output KW : 0.19 kW
Frequency : 60 Hz
Voltage : 115 V
Current : 5.1 A
Speed : 1725 rpm
Service Factor : 1.35
Phases : 1
Efficiency : 52.8 %
Duty : CONT
Insulation Class : B
KVA Code : R
Frame : 48
Enclosure : DP
Overload Protector : N/R
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes
CE : N

Technical Specifications

Electrical Type : Split Phase
Starting Method : SM
Poles : 4 Rotation : CCW/CW
Mounting : RB
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 8.94 in
Frame Length : 5.16 in
Shaft Diameter : 0.5 in
Shaft Extension : 1.5 in
Thru-bolts Extension : 0
UPC : 722856003485
Weight : 13.00 LB
