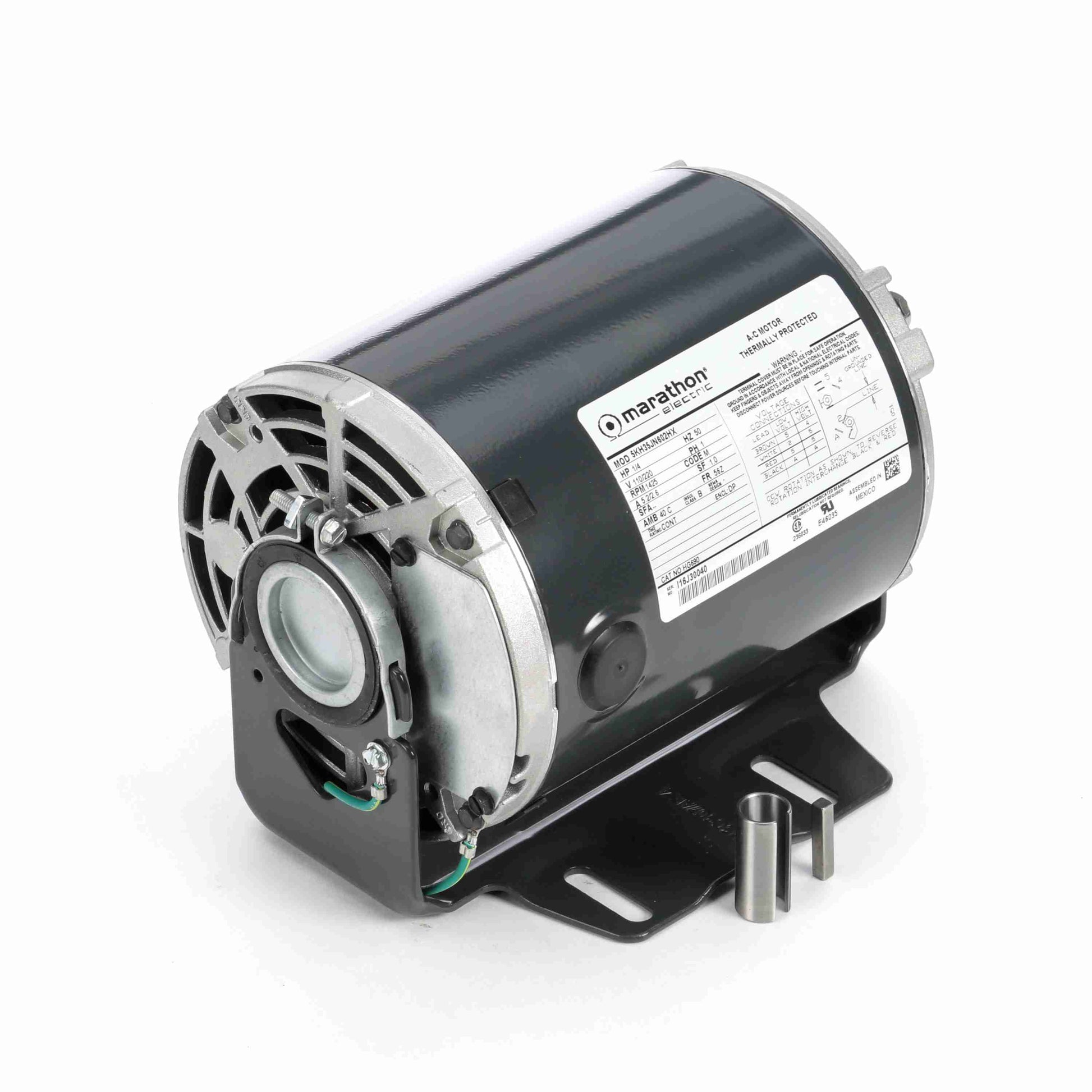

Marathon Electric 4359, 1/4 Hp, 1800 Rpm, 56Z FR, 115 Vac, 1 PH, Dripproof, Resilient Base, Fan and Blower, 5KH39QN5523.

4359, 1/4 Hp, 1800 Rpm, 56Z FR, 115 Vac, 1 PH, Dripproof, Resilient Base, Fan and Blower, 5KH39QN5523.

Engineering Data

Nameplate Specifications

Output HP : 0.25 Hp
Output KW : 0.19 kW
Frequency : 60 Hz
Voltage : 115 V
Current : 5.7 A
Speed : 1725 rpm
Service Factor : 1
Phases : 1
Efficiency : 46.5 %
Duty : CONT
Insulation Class : B
KVA Code : S
Frame : 56Z
Enclosure : DP
Overload Protector : N/R
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes
CE : N

Technical Specifications

Electrical Type : Split Phase
Starting Method : SM
Poles : 4
Rotation : CCW/CW
Mounting : RB
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 9.19 in
Frame Length : 5.41 in
Shaft Diameter : 0.5 in
Shaft Extension : 1.5 in
UPC : 722856007490
Weight : 13.00 LB
