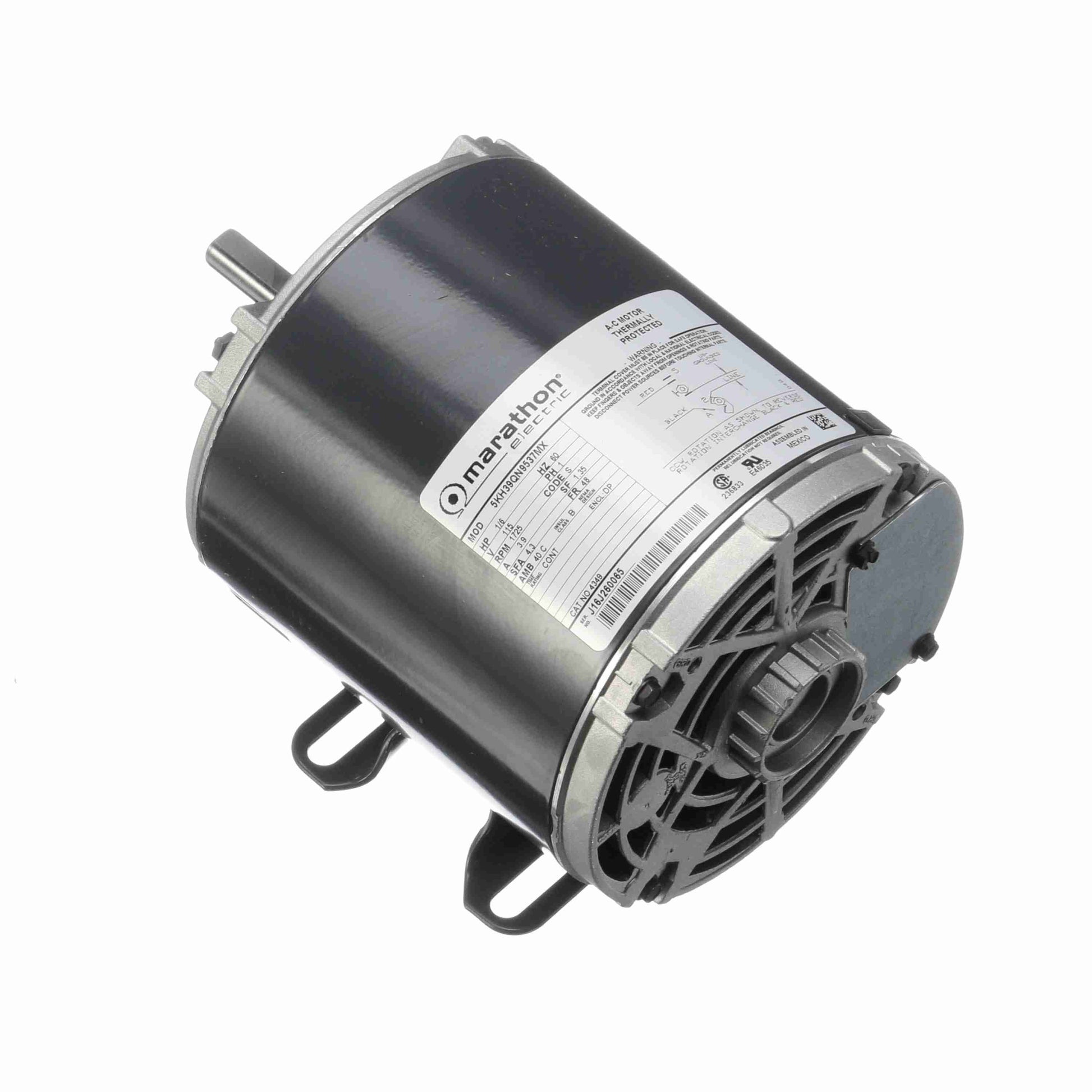

Marathon Electric 4372, 1/3 Hp, 1800 Rpm, 56Z FR, 115V, 1 PH, Dripproof, Rigid Base, Special Purpose, 5KH39QN9546.

4372, 1/3 Hp, 1800 Rpm, 56Z FR, 115V, 1 PH, Dripproof, Rigid Base, Special Purpose, 5KH39QN9546.

General Specifications

Model : 5KH39QN9546
Catalog No : 4372
Part Description : 1/3,1725,DP,56Z,1/60/115
Category : Open Drip Proof (ODP)
Stock : Yes

Engineering Data

Output HP : 0.33 Hp
Output KW : 0.25 kW
Frequency : 60 Hz
Voltage : 115 V
Current : 6.2 A
Speed : 1725 rpm
Service Factor : 1
Phases : 1
Efficiency : 59.5 %
Duty : CONT
Insulation Class : B
KVA Code : T
Frame : 56Z
Enclosure : DP
Overload Protector : N/R
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes
CE : N

Technical Specifications

Electrical Type : Split Phase
Starting Method : SM
Poles : 4 Rotation : CCW/CW
Mounting : WB
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 8.9 in
Frame Length : 5.16 in
Shaft Diameter : 0.5 in
Shaft Extension : 1.5 in
UPC : 722856006943
Weight : 15.00 LB
