Industrial Motors

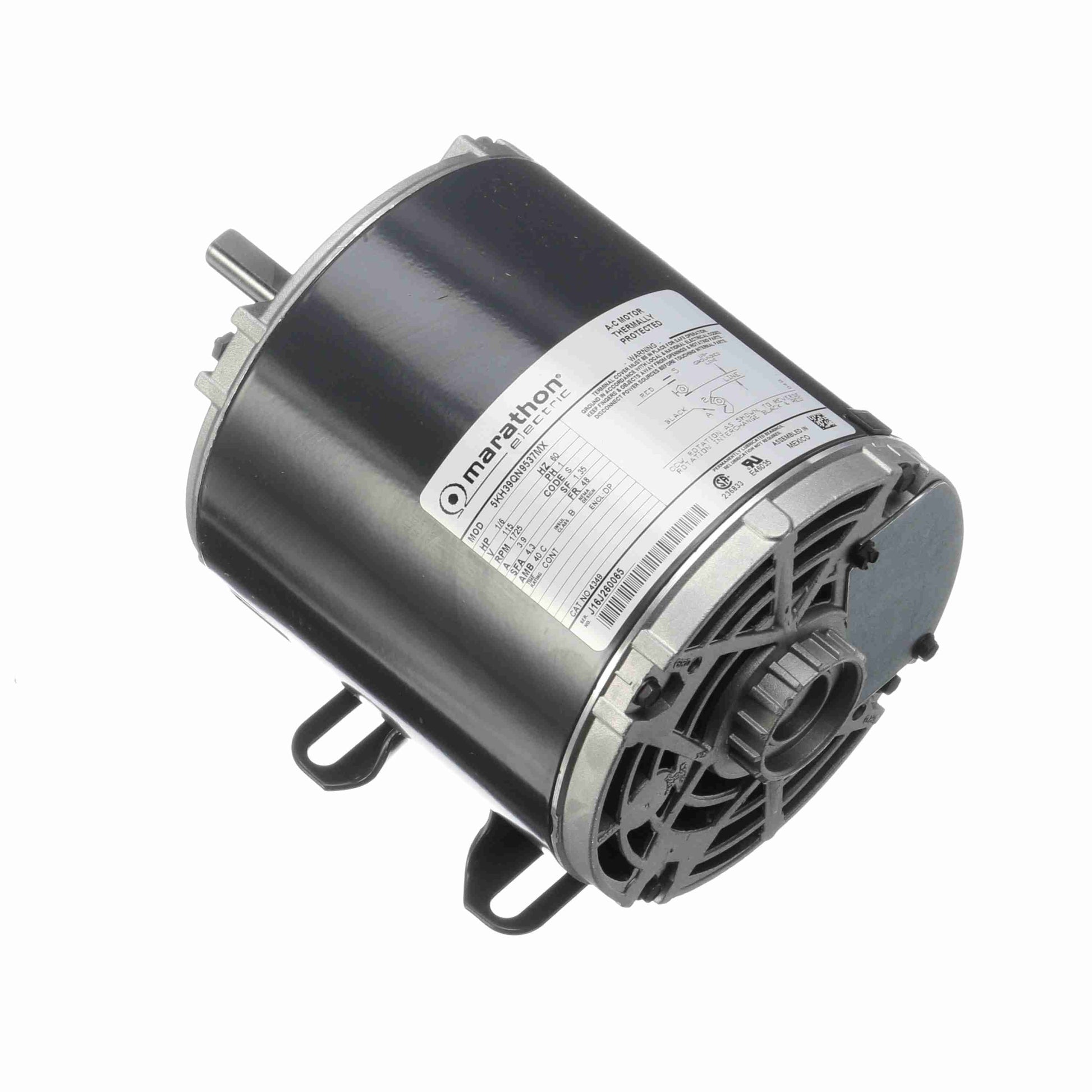

Marathon Electric 4373, 1/3 Hp, 1800 Rpm, 48 FR, 230 V, 1 PH, Dripproof, Rigid Base, Special Purpose, 5KH39QN9543.

Marathon Electric 4373, 1/3 Hp, 1800 Rpm, 48 FR, 230 V, 1 PH, Dripproof, Rigid Base, Special Purpose, 5KH39QN9543.

$455.00
$455.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$455.00 $432.25
Sale

4373, 1/3 Hp, 1800 Rpm, 48 FR, 230 V, 1 PH, Dripproof, Rigid Base, Special Purpose, 5KH39QN9543.

Engineering Data

Output HP : 0.33 HP
Output KW : 0.25 kW
Frequency : 60 Hz
Voltage : 230 V
Current : 3.3 A
Speed : 1725 RPM
Service Factor : 1
Phase : 1
Efficiency : 57.5 %
Duty : Continous
Insulation Class : B
KVA Code : T
Frame : 48
Enclosure : Drip Proof
Overload Protector : N/R
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes CE : N
Technical Specifications
Electrical Type : Split Phase
Starting Method : SM
Poles : 4
Rotation : Selective Counterclockwise
Mounting : Rigid Base
Motor Orientation : Any
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 8.9 in
Frame Length : 5.16 in
Shaft Diameter : 0.500 in
Shaft Extension : 1.5 in
UPC : 722856006950
Weight : 14.00 LB
