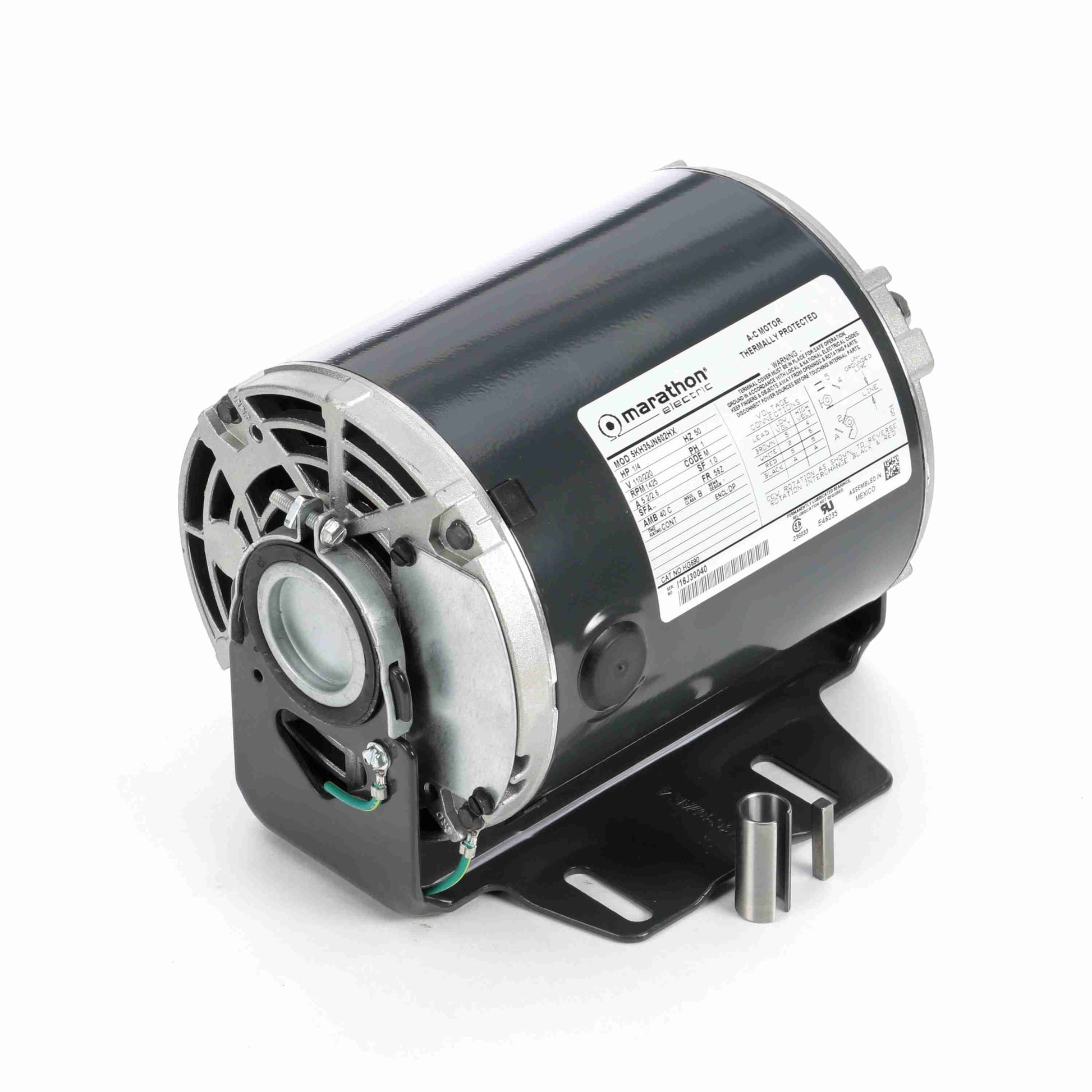

Marathon Electric 4377, 1/3 Hp, 1800 Rpm, 56Z FR, 115 V, 1 PH, Dripproof, Resilient Base, Fan and Blower Motor, 5KH39QN5524.

4377, 1/3 Hp, 1800 Rpm, 56Z FR, 115 V, 1 PH, Dripproof, Resilient Base, Fan and Blower Motor, 5KH39QN5524.

General Specifications

Model : 5KH39QN5524
Catalog No : 4377
Part Description : 1/3,1725,DP,56Z,1/60/115
Category : Open Drip Proof (ODP)
Stock : Yes

Nameplate Specifications

Output HP : 0.33 Hp
Output KW : 0.25 kW
Frequency : 60 HzVoltage : 115 V
Current : 6.2 A
Speed : 1725 rpm
Service Factor : 1
Phases : 1
Efficiency : 59.5 %
Duty : CONT
Insulation Class : B
KVA Code : T
Frame : 56Z
Enclosure : DP
Overload Protector : N/R
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes
CE : N

Technical Specifications

Electrical Type : Split
Phase Starting Method : SM
Poles : 4
Rotation : CCW/CW
Mounting : RB
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 9.19 in
Frame Length : 5.41 in
Shaft Diameter : 0.5 in
Shaft Extension : 1.5 in
UPC : 722856007650
