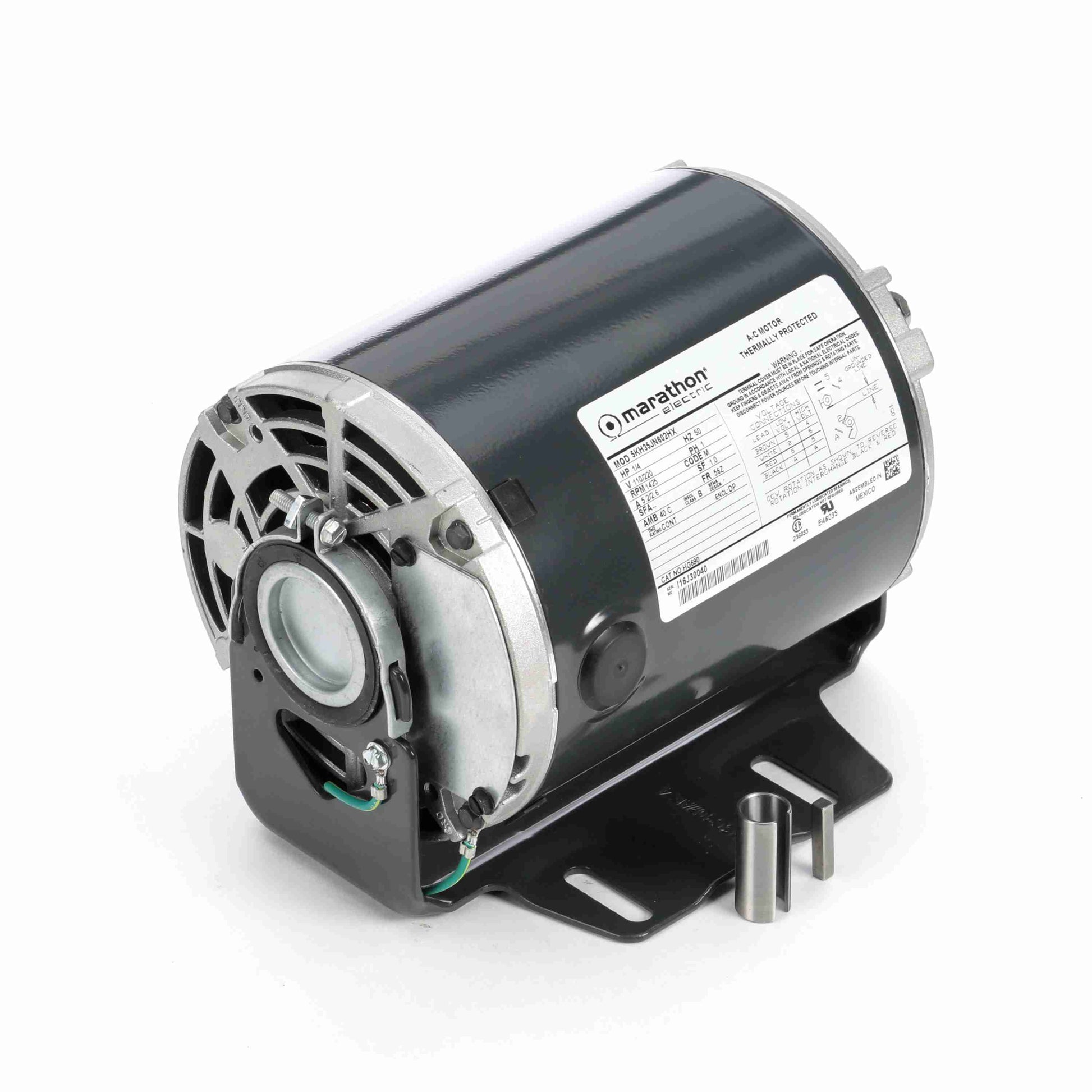

Marathon Electric 4387, 1/2 Hp, 1800 Rpm, 56 FR, 230 Vac, 1 PH, Dripproof, Resilient Base, Fan and Blower Motor, 5KH39QN9684

4387, 1/2 Hp, 1800 Rpm, 56 FR, 230 Vac, 1 PH, Dripproof, Resilient Base, Fan and Blower Motor, 5KH39QN9684

Engineering Data

Nameplate Specifications

Output HP : 0.5 Hp
Output KW : 0.37 kW
Frequency : 60 Hz
Voltage : 230 V
Current : 4.2 A
Speed : 1725 rpm
Service Factor : 1
Phases : 1
Efficiency : 62 %
Duty : CONT
Insulation Class : B
KVA Code : P
Frame : 56
Enclosure : DP
Overload Protector : N/R
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size :
6203 UL : Recognized
CSA : Yes
CE : N

Technical Specifications

Electrical Type : Split Phase
Starting Method : SM
Poles : 4
Rotation : CCW/CW
Mounting : RB
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 10.32 in
Frame Length : 6.22 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.88 in
UPC : 722856007674
Weight : 19.00 LB
