Industrial Motors

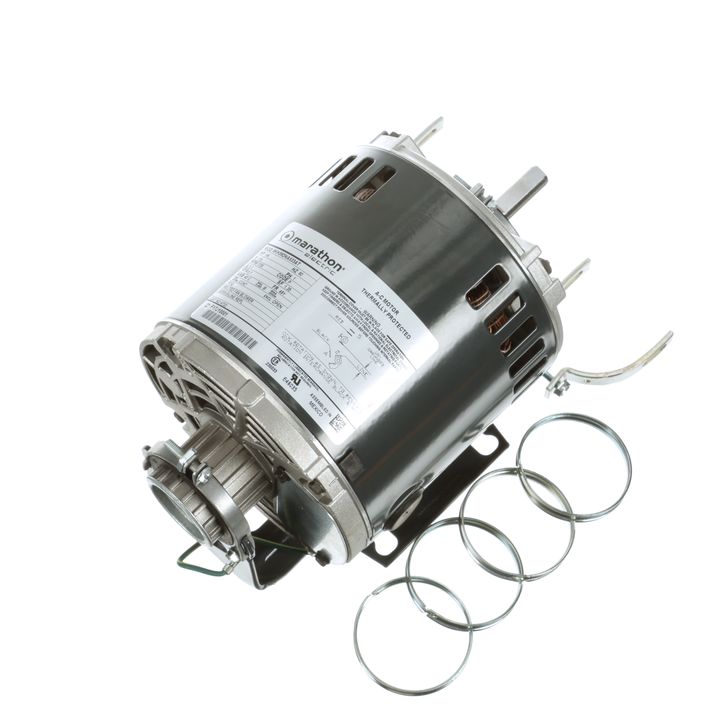

Marathon Electric 4733, 1/4 Hp, 1725 Rpm, 48Y FR, 115 Vac, Split PH, Resilient Base, Furnace Blower, 5KH39DNA533T

Marathon Electric 4733, 1/4 Hp, 1725 Rpm, 48Y FR, 115 Vac, Split PH, Resilient Base, Furnace Blower, 5KH39DNA533T

$380.00
$380.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$380.00 $361.00
Sale
Marathon Electric Motors is no longer manufacturing this motor, possible replacement is the following Marathon Electric Motors part# 4730

**This motor is now a built to order motor, possible replacement is model# 4730, same motor, but doesn't come with the Resilient Ring**
4733, 1/4 Hp, 1725 Rpm, 48Y FR, 115 Vac, Split PH, Resilient Base, Furnace Blower, 5KH39DNA533T

Engineering Data

60 Hertz
HP 1/4
Voltage 115
kW N/A FL Amps 5.1
RPM 1725
FL Eff 0 % SF 1.35

Phase 1
Insulation Class B
Frame 48Y
Duty Continuous
Enclosure OPEN
Ambient 40
Mounting RB NEMA Design N/A
Orientation Horizontal or Vertical Starting Type Switch and Mech
Assembly N/A
KVA Code P
Drive End Bearing BALL
IP Code N/A
Opposite End Bearing BALL
Drive End Bearing Size 6203
Rotation Clockwise
Opposite End Bearing Size 6203
Hazardous Location N/R
Weight 13 LB lbs
CE N/A CSA Y
UL Y
Thermal Protection Automatic
