Industrial Motors

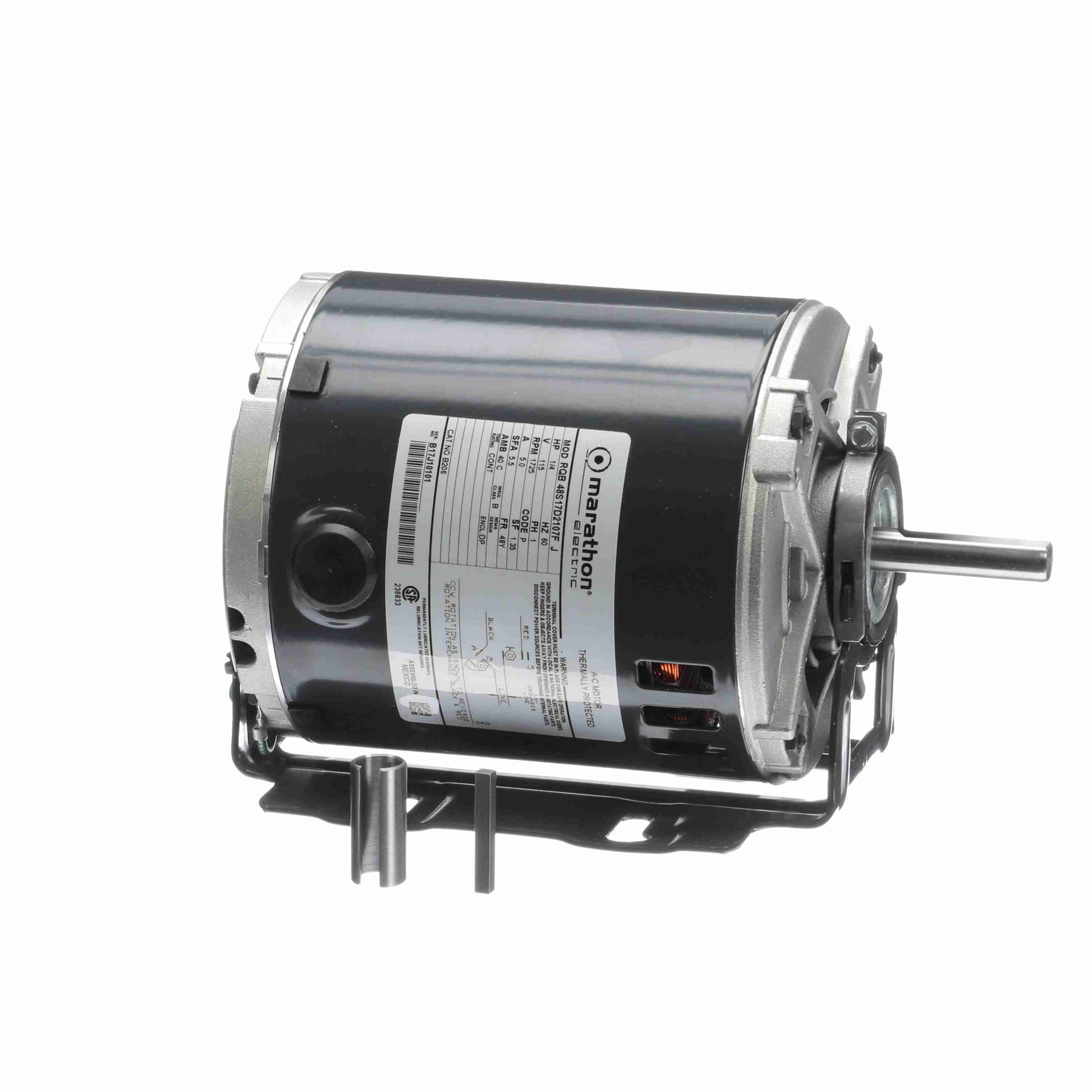

Marathon Electric 4759, 1/2 Hp, 1725 Rpm, 56 FR, 230 Vac, 1 PH, Dripproof, Resilient Base, Fan and Blower Motor, 5KH39QN9697T.

Marathon Electric 4759, 1/2 Hp, 1725 Rpm, 56 FR, 230 Vac, 1 PH, Dripproof, Resilient Base, Fan and Blower Motor, 5KH39QN9697T.

$558.00
$558.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$558.00 $530.10
Sale

4759, 1/2 Hp, 1725 Rpm, 56 FR, 230 Vac, 1 PH, Dripproof, Resilient Base, Fan and Blower Motor, 5KH39QN9697T.

Engineering Data

Output HP : 1/2 Hp
Output KW : 0.37 kW
Frequency : 60 Hz
Voltage : 230 V
Current : 4 A
Speed : 1725 rpm
Service Factor : 1.25
Phase : 1
Efficiency : 66.4 %
Duty : Continuous
Insulation Class : B KVA
Code : N
Frame : 56Z
Enclosure : Drip Proof Overload
Protector : AUTO
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes CE : N
Technical Specifications
Electrical Type : Split Phase
Starting Method : SM
Poles : 4
Rotation : Counterclockwise/Clockwise
Mounting : Resilient Base
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 9.99 in
Frame Length : 6.22 in
Shaft Diameter : 0.5 in
Shaft Extension : 1.5 in
Thru-bolts Extension : 0 in
