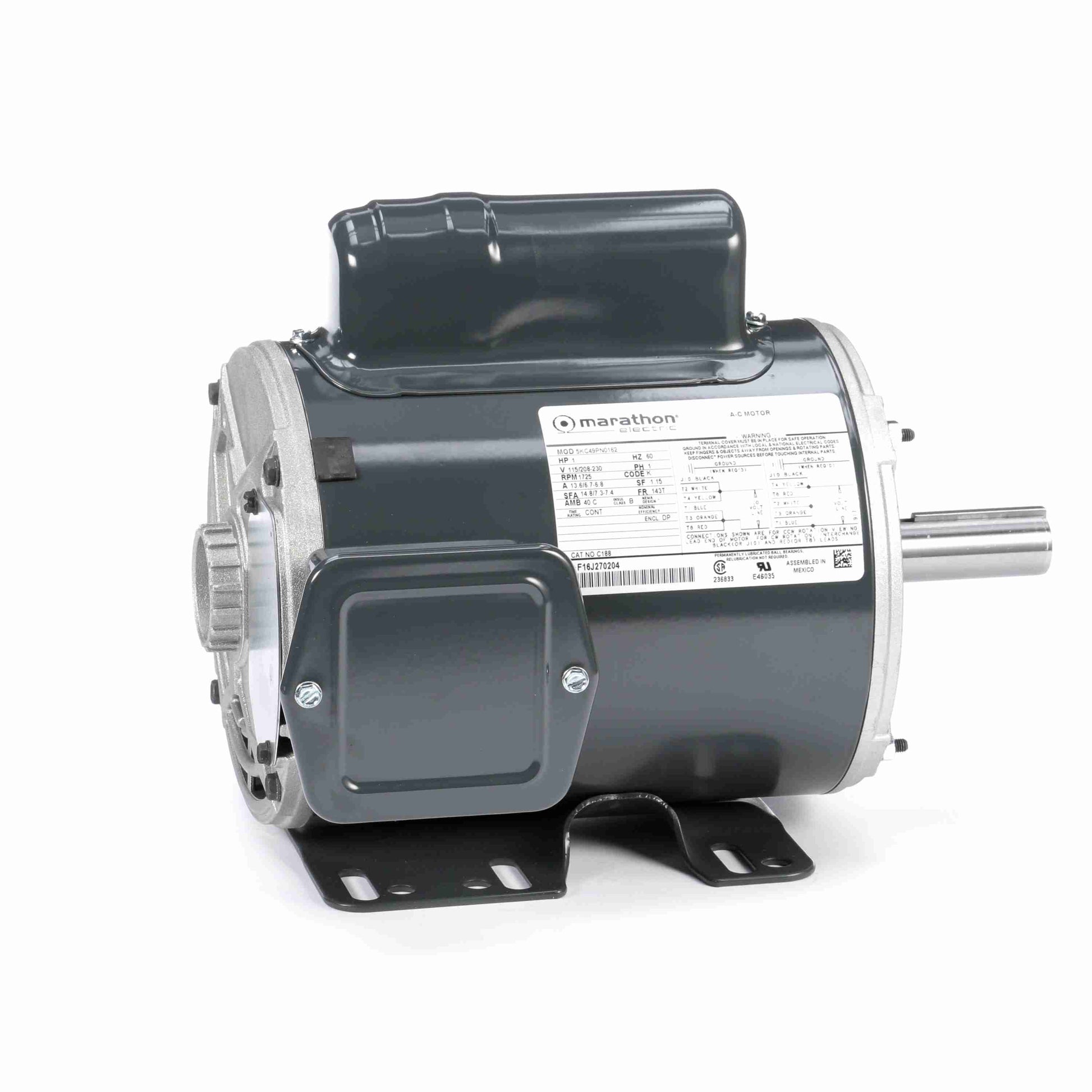

Marathon Electric 9031, 5KC49MN2043Y 1/2 Hp, 3600 Rpm, 56 FR, 115V, 1 PH, Dripproof, Rigid Base, General Purpose

9031, 5KC49MN2043Y 1/2 Hp, 3600 Rpm, 56 FR, 115V, 1 PH, Dripproof, Rigid Base, General Purpose

General Specifications

Model : 5KC49MN2043Y
Catalog No : 9031
Part Description : 1/2,6450,DP,56,1/60/115
Category : General Purpose
Stock : Yes

Nameplate Specifications

Output HP : 0.5 Hp
Output KW : 0.37 kW
Frequency : 60 Hz
Voltage : 115 V
Current : 11.5 A
Speed : 3450 rpm
Service Factor : 1
Phases : 1
Efficiency : 59.5 %
Duty : CONT
Insulation Class : B
KVA Code : K
Frame : 56
Enclosure : DP
Overload Protector : MAN
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes
CE : N

Technical Specifications

Electrical Type : Capacitor start (CSIR)
Starting Method : SM
Poles : 2
Rotation : CW
Mounting : WB
Motor Orientation : HOR
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 11.14 in
Frame Length : 6.92 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.88 in
UPC : 722856048097
Weight : 26.00 LB
