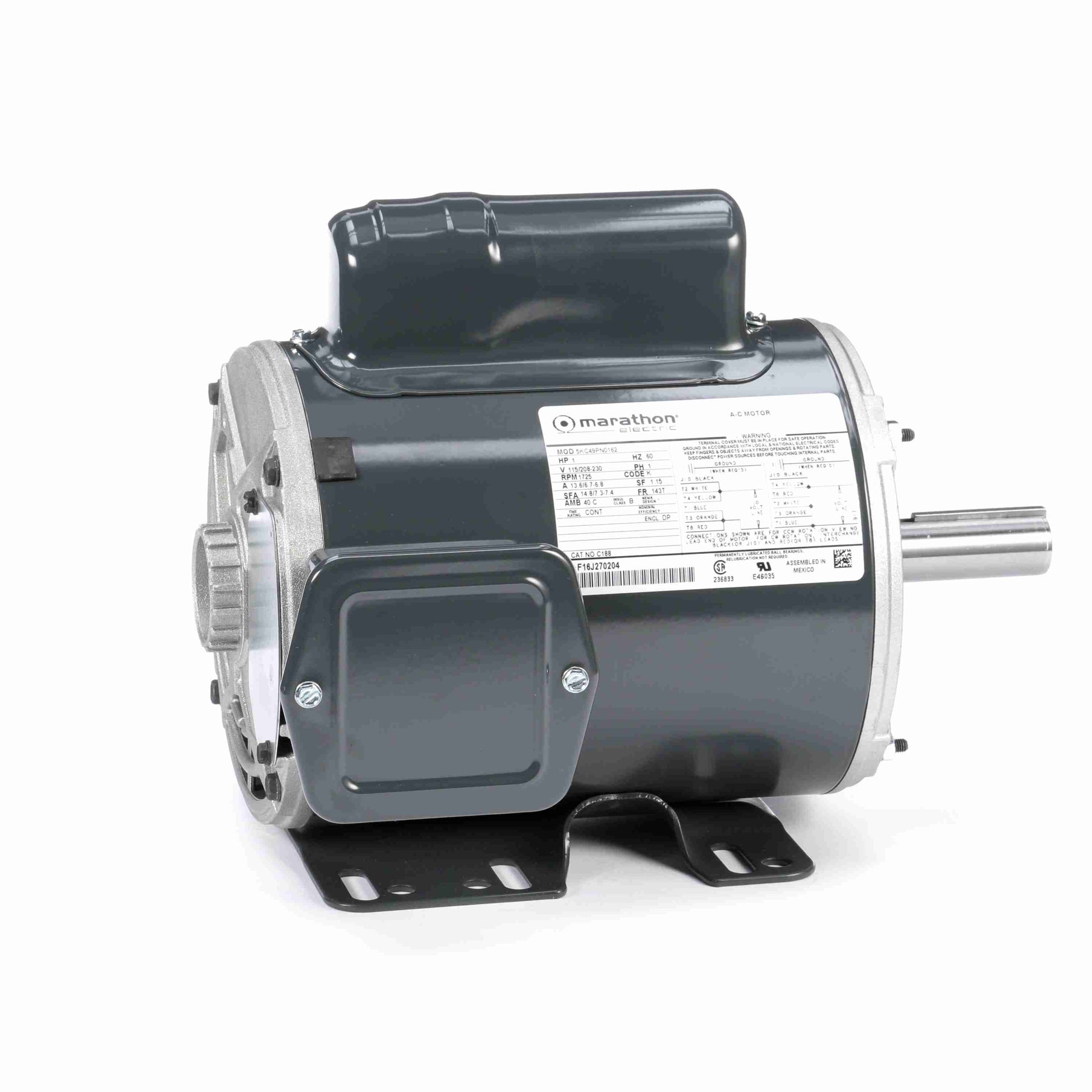

Marathon Electric 9033, 5KC49NN2050Y 1 Hp, 3600 Rpm, 56 FR, 115/230 V, 1 PH, Dripproof, Rigid Base, General Purpose

9033, 5KC49NN2050Y 1 Hp, 3600 Rpm, 56 FR, 115/230 V, 1 PH, Dripproof, Rigid Base, General Purpose

General Specifications

Model : 5KC49NN2050Y
Catalog No : 9033
Part Description : 1,3450,OPEN,56,1/60/115/230
Category : Open Air Over (OAO)
Stock : No

Nameplate Specifications

Output HP : 1 Hp
Output KW : 0.75 kW
Frequency : 60 Hz
Voltage : 115/230 V
Current : 16.0,8.0 A
Speed : 3450 rpm
Service Factor : 1
Phases : 1
Efficiency : 69.7 %
Duty : CONT
Insulation Class : B
KVA Code : P
Frame : 56
Enclosure : OPEN
Overload Protector : MAN
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes
CE : N

Technical Specifications

Electrical Type : Capacitor start(CSIR)
Starting Method : SM
Poles : 2
Rotation : CW
Mounting : WB
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 11.14 in
Frame Length : 6.92 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.88 in
UPC : 722856048103
Weight : 23.00 LB
