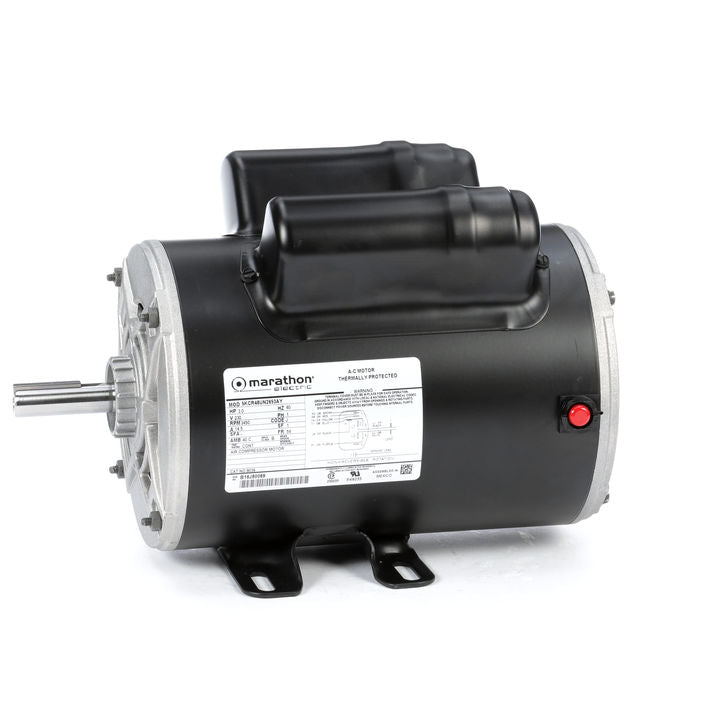

Marathon Electric 9036, 3 Hp, 3600 Rpm, 56H FR, 230 V, 1 PH, Dripproof, Rigid Base, General Purpose, 5KCR48UN2653Y

9036, 3 Hp, 3600 Rpm, 56H FR, 230 V, 1 PH, Dripproof, Rigid Base, General Purpose, 5KCR48UN2653Y

General Specifications

Model : 5KCR48UN2653Y
Catalog No : 9036
Part Description : 3,3600,DP,56,1/60/230
Category : Air Compressor
Stock : Yes

Nameplate Specifications

Output HP : 3 Hp
Output KW : 2.24 kW
Frequency : 60 Hz
Voltage : 230 V
Current : 14 A
Speed : 3450 rpm
Service Factor : 1
Phases : 1
Efficiency : 78.5 %
Duty : CONT
Insulation Class : B
KVA Code : J
Frame : 56
Enclosure : DP
Overload Protector : MAN
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes
CE : N

Technical Specifications

Electrical Type : Capacitor Start Capacitor Run(CSCR)
Starting Method : SM
Poles : 2
Rotation : CW/CCW
Mounting : WB
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 12.64 in
Frame Length : 8.43 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.88 in
UPC : 722856048127
Weight : 40.00 LB
