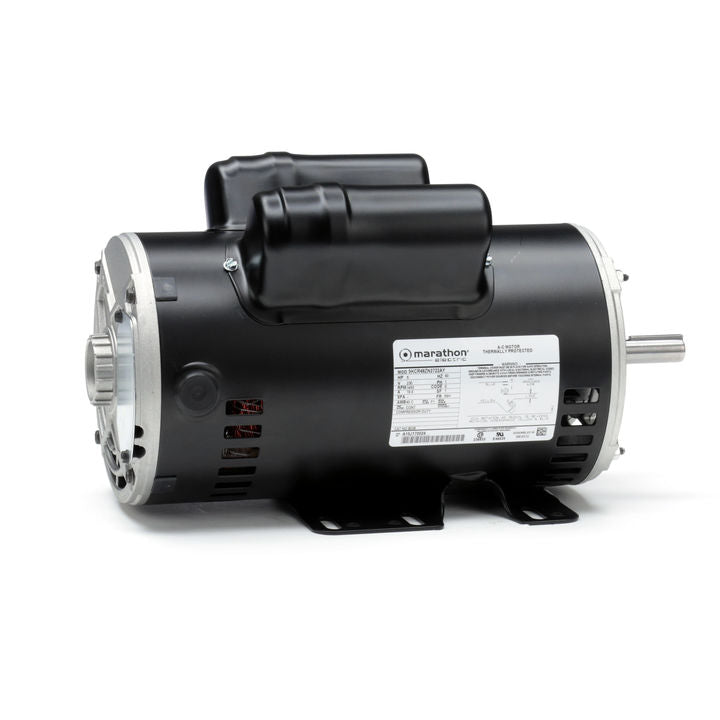

Marathon Electric 9038B, 5 Hp, 3600 Rpm, 56H FR, 230 V, 1 PH, Dripproof, Rigid Base, General Purpose, 5KCR49ZN2722Y

9038B, 5 Hp, 3600 Rpm, 56H FR, 230 V, 1 PH, Dripproof, Rigid Base, General Purpose, 5KCR49ZN2722Y

General Specifications

Model : 5KCR49ZN2722Y
Catalog No : 9038B
Part Description : 5,3600,DP,56H,1/60/230
Category : Air Compressor
Stock : No

Nameplate Specifications

Output HP : 5 Hp
Output KW : 3.73 kW
Frequency : 60 Hz
Voltage : 230 V
Current : 19.6 A
Speed : 3450 rpm
Service Factor : 1
Phases : 1
Efficiency : 81.6 %
Duty : CONT
Insulation Class : F1
KVA Code : E
Frame : 56H
Enclosure : DP
Overload Protector : MAN
Ambient Temperature : 40 °C
Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes
CE : N

Technical Specifications

Electrical Type : Capacitor Start Capacitor Run(CSCR)
Starting Method : SM
Poles : 2
Rotation : CW/CCW
Mounting : WB
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 15.04 in
Frame Length : 10.71 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.88 in
UPC : 722856048233
Weight : 49.00 LB
