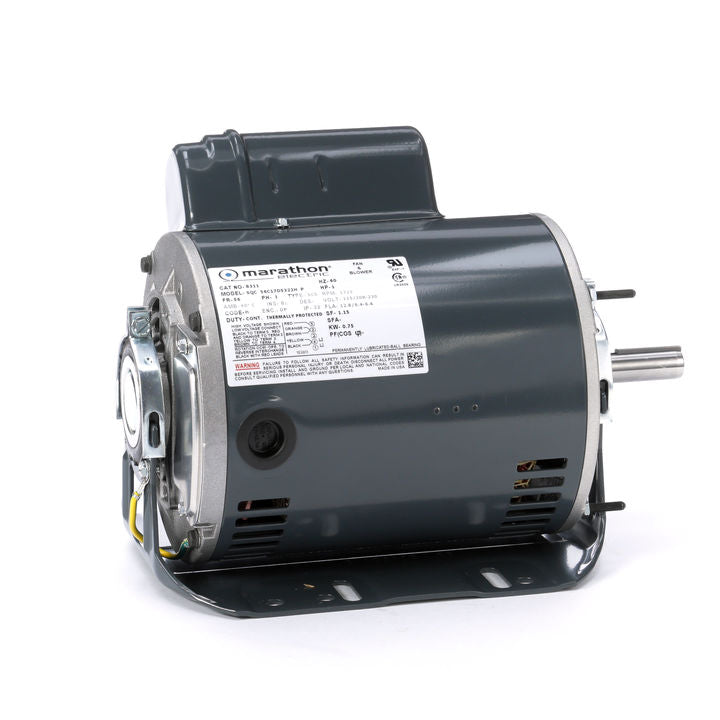

Marathon Electric B311, 1 Hp, 1725 RPM, 56Z FR, 115/208-230 Vac, 1 PH, Dripproof , Resilient Base, Fan and Blower-Capacitor Start Motor, 5KC49NN0061T

B311, 1 Hp, 1725 RPM, 56Z FR, 115/208-230 Vac, 1 PH, Dripproof , Resilient Base, Fan and Blower-Capacitor Start Motor, 5KC49NN0061T

General Specifications

Model : 056C17D5322
Catalog No : B311
Part Description : 1,1725,DP,56,1/60/115/208-230
Category : Fan and Blower

Nameplate Specifications

Output HP : 1 Hp
Output KW : 0.75 kW
Frequency : 60 Hz
Voltage : 115/208-230 V
Current : 12.8/6.4-6.4 A
Speed : 1725 rpm
Service Factor : 1.15
Phases : 1
Efficiency : 72 %
Duty : CONTINUOUS
Insulation Class : B
Design Code : NO DESIGN CODE K
VA Code : H
Frame : 56
Enclosure : DP
Overload Protector : AUTOMATIC
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : N IP
Code : 22

Technical Specifications

Electrical Type : CAP START IND RUN
Starting Method : ACROSS THE LINE
Poles : 4
Rotation : SELECTIVE CCW
Mounting : RESILIENT BASE-EXTENDED STUDS
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : T
Overall Length : 11.35 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.88 in
Assembly/Box Mounting : F1
ONLY UPC : 722856062024
