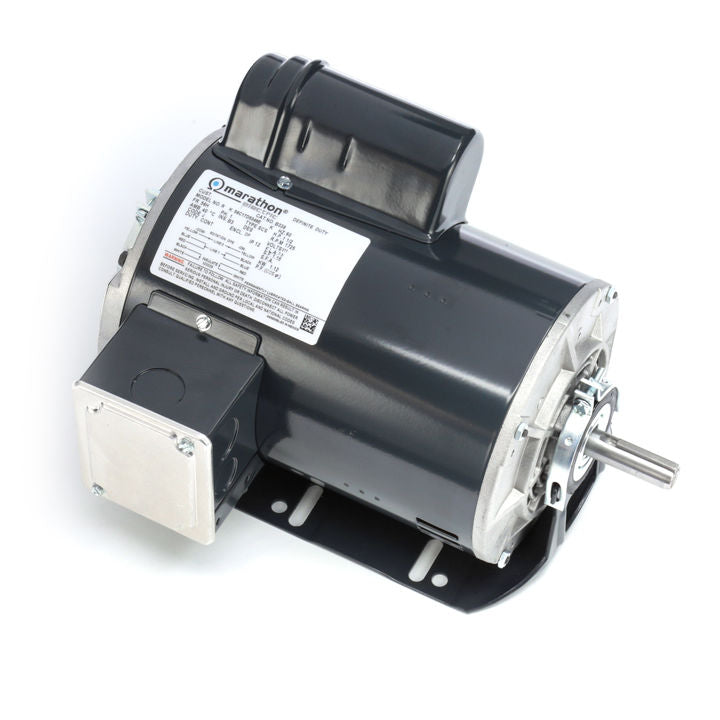

Marathon Electric B338, 1 1/2 Hp, 1725 Rpm, 56H FR, 277 Vac, Dripproof, Resilient Base, Capacitor Start, Fan Blower Motor, No Over Load, 56C17D5349

B338, 1 1/2 Hp, 1725 Rpm, 56H FR, 277 Vac, Dripproof, Resilient Base, Capacitor Start, Fan Blower Motor, No Over Load, 56C17D5349

Engineering Data

Output HP : 1.50 HP
Output KW : 1.1 kW
Frequency : 60 Hz
Voltage : 277 V
Current : 7.5 A
Speed : 1725 RPM
Service Factor : 1.15
Phase : 1
Efficiency : 77 %
Duty : Continuous
Insulation Class : B
Design Code : NO DESIGN CODE
KVA Code : J
Frame : 56H
Enclosure : Drip Proof
Overload Protector : No
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : No
CSA : N CE : N IP Code : 12
Technical Specifications
Electrical Type : Capacitor Start Induction Run
Starting Method : Across The Line
Poles : 4
Rotation : Selective Counterclockwise
Mounting : Resilient Base - Extended Studs
Motor Orientation : Horizontal
Drive End Bearing : Ball
Opp Drive End Bearing : Ball
Frame Material : Rolled Steel
Shaft Type : T
Overall Length : 12.85 in
Frame Length : 8.56 in
Shaft Diameter : 0.625 in
Shaft Extension : 1.91 in
Assembly/Box Mounting : F1 Only
