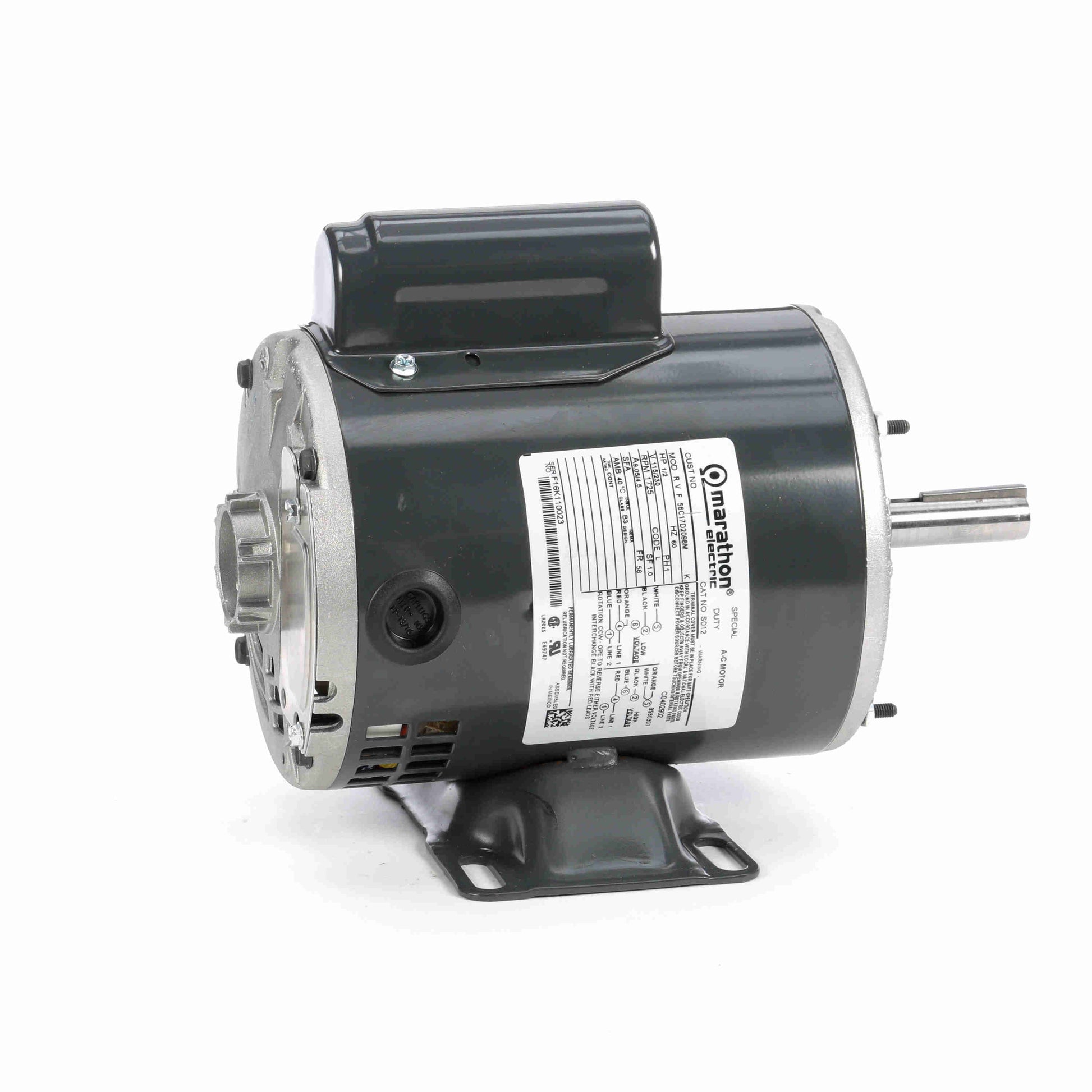

Marathon Electric B387, 056S17D7202, 1/3 Hp, 1725/1140 RPM, 56 FR, 115 V, 1 PH, Dripproof , Resilient Base, Fan and Blower

Marathon Electric B387, 056S17D7202, 1/3 Hp, 1725/1140 RPM, 56 FR, 115 V, 1 PH, Dripproof , Resilient Base, Fan and Blower

General Specifications

Model : 056S17D7202
Catalog No : B387
Part Description : (USE 5KH46MN3025) 1/3,17/11,DP,56,1/60/115
Category : Fan and Blower
Stock : No

Nameplate Specifications

Output HP : 0.33,0.11 Hp
Output KW : 0.25 kW
Frequency : 60 Hz
Voltage : 115 V
Current : 5.3,2.9 A
Speed : 1725,1140 rpm
Service Factor : 1.35
Phases : 1
Efficiency : 64 %
Duty : CONTINUOUS
Insulation Class : B
Design Code : 2VT
KVA Code : M
Frame : 56
Enclosure : DP
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : N IP
Code : 22

Technical Specifications

Electrical Type : SPLIT PHASE
Starting Method : ACROSS THE LINE
Poles : 4//6
Rotation : SELECTIVE CCW
Mounting : RESILIENT BASE-EXTENDED STUDS
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : T Overall Length : 10.78 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY
