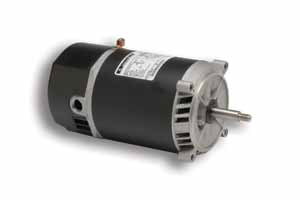

Marathon Electric C1086, 2 HP, 3600 Rpm, 56C FR, 115/230 Vac, 1 PH, Dripproof, Jet Pump, Two-Compartment, 5KCR39UN2558X

Marathon Electric C1086, 2 HP, 3600 Rpm, 56C FR, 115/230 Vac, 1 PH, Dripproof, Jet Pump, Two-Compartment, 5KCR39UN2558X

$1,229.00
$1,229.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,229.00 $1,167.55
Sale

C1086, 2 HP, 3600 Rpm, 56C FR, 115/230 Vac, 1 PH, Dripproof, Jet Pump, Two-Compartment, 5KCR39UN2558X.

Engineering Data

Output HP :2 HP
Output KW :1.5 kW
Frequency :60 Hz
Voltage :115/230 V
Current :19.2,9.6 A
Speed :3450 RPM
Service Factor :1.2
Phase :1
Efficiency :80 %
Duty :Continous
Insulation Class :B
KVA Code :J
Frame :56C
Enclosure :Drip Proof
Overload Protector :AUTO
Ambient Temperature :50 °C
Drive End Bearing Size :6204
Opp Drive End Bearing Size :6203
UL :Recognized
CSA :Yes
CE :N
Technical Specifications
Electrical Type :Capacitor Start Capacitor Run
Starting Method :SM
Poles :2
Rotation :Clockwise
Mounting :Round
Motor Orientation :ANY
Drive End Bearing :LOCKED
Opp Drive End Bearing :BALL
Frame Material :Rolled Steel
Overall Length :13.47 in
Frame Length :6.87 in
Shaft Diameter :0.63 in
Shaft Extension :1.88 in
UPC :722856031860
