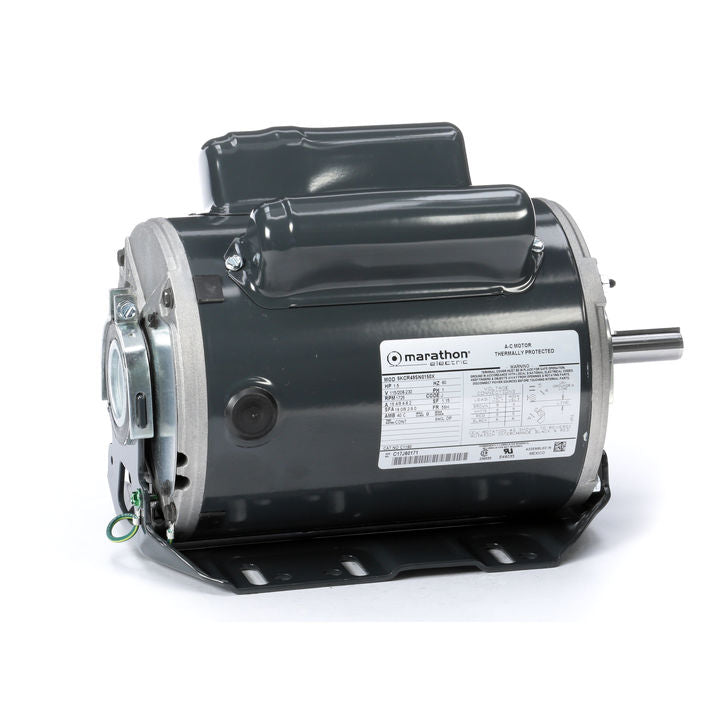

Marathon Electric C1160, 1 1/2 Hp,1800 Rpm, 56H FR, 115/208-230 Vac, 1 PH, Dripproof, Resilient Base, General Purpose, Auto Over Load, 5KCR49SN0150X.

Marathon Electric C1160, 1 1/2 Hp,1800 Rpm, 56H FR, 115/208-230 Vac, 1 PH, Dripproof, Resilient Base, General Purpose, Auto Over Load, 5KCR49SN0150X.

$1,212.00
$1,212.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,212.00 $1,151.40
Sale

C1160, 1 1/2 Hp,1800 Rpm, 56H FR, 115/208-230 Vac, 1 PH, Dripproof, Resilient Base, General Purpose, Auto Over Load, 5KCR49SN0150X.

Engineering Data

Output HP  1.5 Hp
Output KW  1.12 kW
Frequency  60 Hz
Voltage  115/208-230 V
Current  16.4,8.4-8.2 A
Speed  1725 rpm
Service Factor  1.15
Phases  1
Efficiency  77 %
Duty  CONT
Insulation Class  B
KVA Code  J
Frame  56H
Enclosure  DP
Overload Protector  AUTO
Ambient Temperature  40 °C
Drive End Bearing Size  6205
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Yes
CE  N
Technical Specifications

Electrical Type  Capacitor Start Capacitor Run(CSCR)
Starting Method  SM
Poles  4
Rotation  CCW/CW
Mounting  RB
Motor Orientation  ANY
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  Rolled Steel
Overall Length  11.9 in
Frame Length  7.68 in
Shaft Diameter  0.63 in
Shaft Extension  1.88 in
