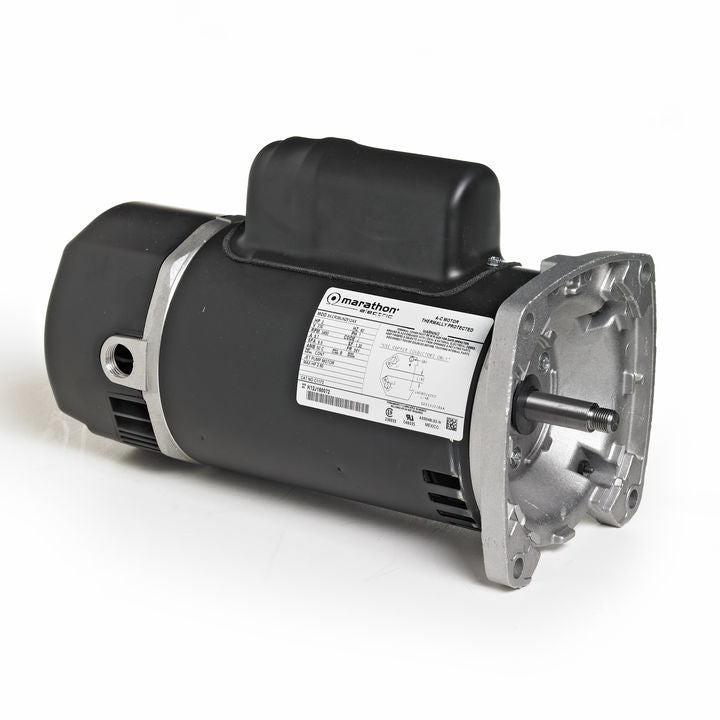

Marathon Electric C1170, 3/4 Hp, 3600 Rpm, 56Y FR, 115/230 Vac, 1 PH, Dripproof, Jet Pump, Two-Compartment, Square Flange, 5KC36PN2509X

** This motor has been replaced by Model# SQ1072**
C1170, 3/4 Hp, 3600 Rpm, 56Y FR, 115/230 Vac, 1 PH, Dripproof, Jet Pump, Two-Compartment, Square Flange, 5KC36PN2509X.

Engineering Data

Output HP :3/4 HP
Output KW :0.56 kW
Frequency :60 Hz
Voltage :115/230 V
Current :12.6,6.3 A
Speed :3450 RPM
Service Factor :1.65
Phase :1
Efficiency :68.2 %
Duty :Continous
Insulation Class :B
KVA Code :P\
Frame :56Y
Enclosure :Drip Proof
Overload Protector :AUTO
Ambient Temperature :50 °C
Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203
UL :Recognized
CSA :Yes
CE :N
Technical Specifications
Electrical Type :Capacitor Start Induction Run
Starting Method :SM
Poles :2
Rotation :Clockwise
Mounting :Round
Motor Orientation :ANY
Drive End Bearing :LOCKED
Opp Drive End Bearing :BALL
Frame Material :Rolled Steel
Overall Length :12.59 in
Frame Length :7.22 in
Shaft Diameter :0.63 in
Shaft Extension :0.265 in
UPC :722856031952
