Industrial Motors

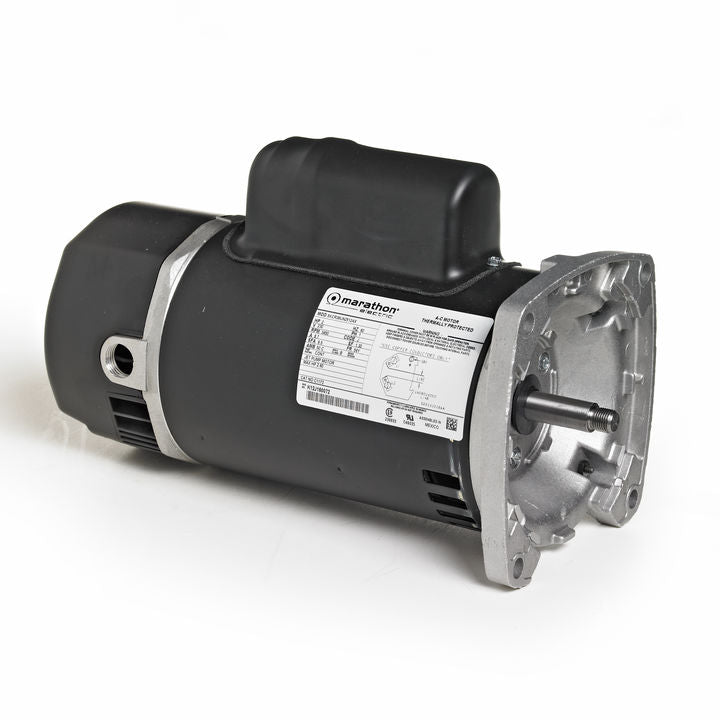

Marathon Electric C1172, 1 1/2 Hp, 3600 Rpm, 56Y FR, 230 Vac, 1 PH, Dripproof, Jet Pump, Two-Compartment, Square Flange, 5KCR39UN2511X

Marathon Electric C1172, 1 1/2 Hp, 3600 Rpm, 56Y FR, 230 Vac, 1 PH, Dripproof, Jet Pump, Two-Compartment, Square Flange, 5KCR39UN2511X

$754.00
$754.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$754.00 $716.30
Sale

C1172, 1 1/2 Hp, 3600 Rpm, 56Y FR, 230 Vac, 1 PH, Dripproof, Jet Pump, Two-Compartment, Square Flange, 5KCR39UN2511X

Engineering Data

Output HP :1.5 HP
Output KW :1.1 kW
Frequency :60 Hz
Voltage :230 V
Current :7.6 A
Speed :3450 RPM
Service Factor :1.5
Phase :1
Efficiency :77 %
Duty :Continous
Insulation Class :B
KVA Code :L
Frame :56Y
Enclosure :Drip Proof
Overload Protector :AUTO
Ambient Temperature :50 °C
Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203
UL :Recognized
CSA :Yes
CE :N
Technical Specifications
Electrical Type :Capacitor Start Capacitor Run
Starting Method :SM
Poles :2
Rotation :Clockwise
Mounting :Round
Motor Orientation :ANY
Drive End Bearing :LOCKED
Opp Drive End Bearing :BALL
Frame Material :Rolled Steel
Overall Length :13.12 in
Frame Length :7.75 in
Shaft Diameter :0.63 in
Shaft Extension :0.265 in
UPC :722856031976
