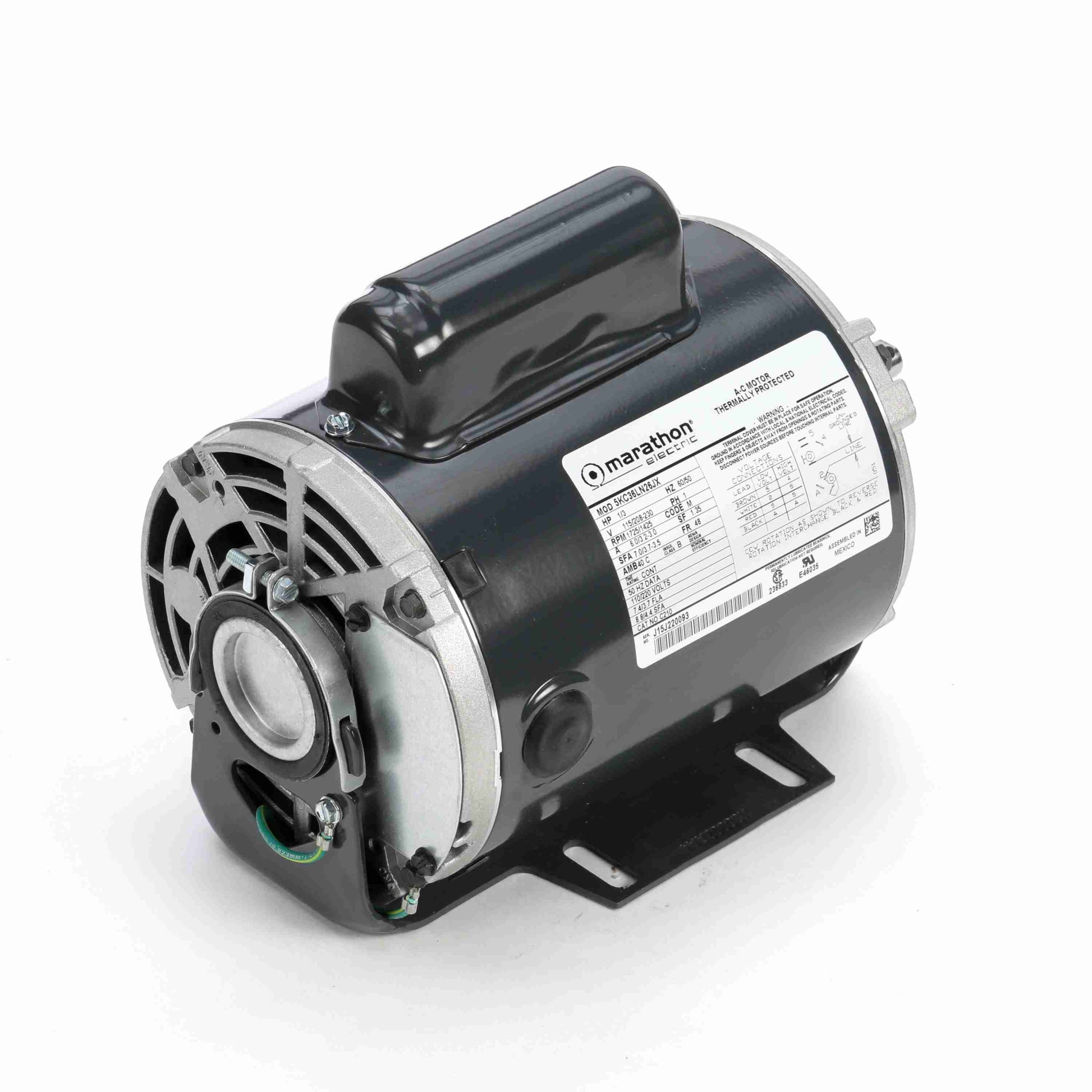

Marathon Electric C1187, 5KC49NN0224X, 3/4 Hp, 1500 RPM, 56 FR, 110/220 V, 1 PH, Dripproof , Resilient Base, Fan and Blower

C1187, 5KC49NN0224X, 3/4 Hp, 1500 RPM, 56 FR, 110/220 V, 1 PH, Dripproof , Resilient Base, Fan and Blower

General Specifications

Model : 5KC49NN0224X
Catalog No : C1187
Part Description : 3/4,1425,DP,56,1/50/110/220
Category : Open Drip Proof (ODP)
Stock : Yes

Nameplate Specifications

Output HP : 0.75 Hp
Output KW : 0.56 kW
Frequency : 50 Hz
Voltage : 110/220 V
Current : 12.2,6.1 A
Speed : 1425 rpm
Service Factor : 1.25
Phases : 1
Efficiency : 68 %
Duty : CONT
Insulation Class : B
KVA Code : M
Frame : 56
Enclosure :
DP Overload Protector : AUTO
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes
CE : N

Technical Specifications

Electrical Type : Capacitor start(CSIR)
Starting Method : SM
Poles : 4
Rotation : CCW/CW
Mounting : RB
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 11.38 in
Frame Length : 7.15 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.88 in
UPC : 722856007285
Weight : 28.00 LB
