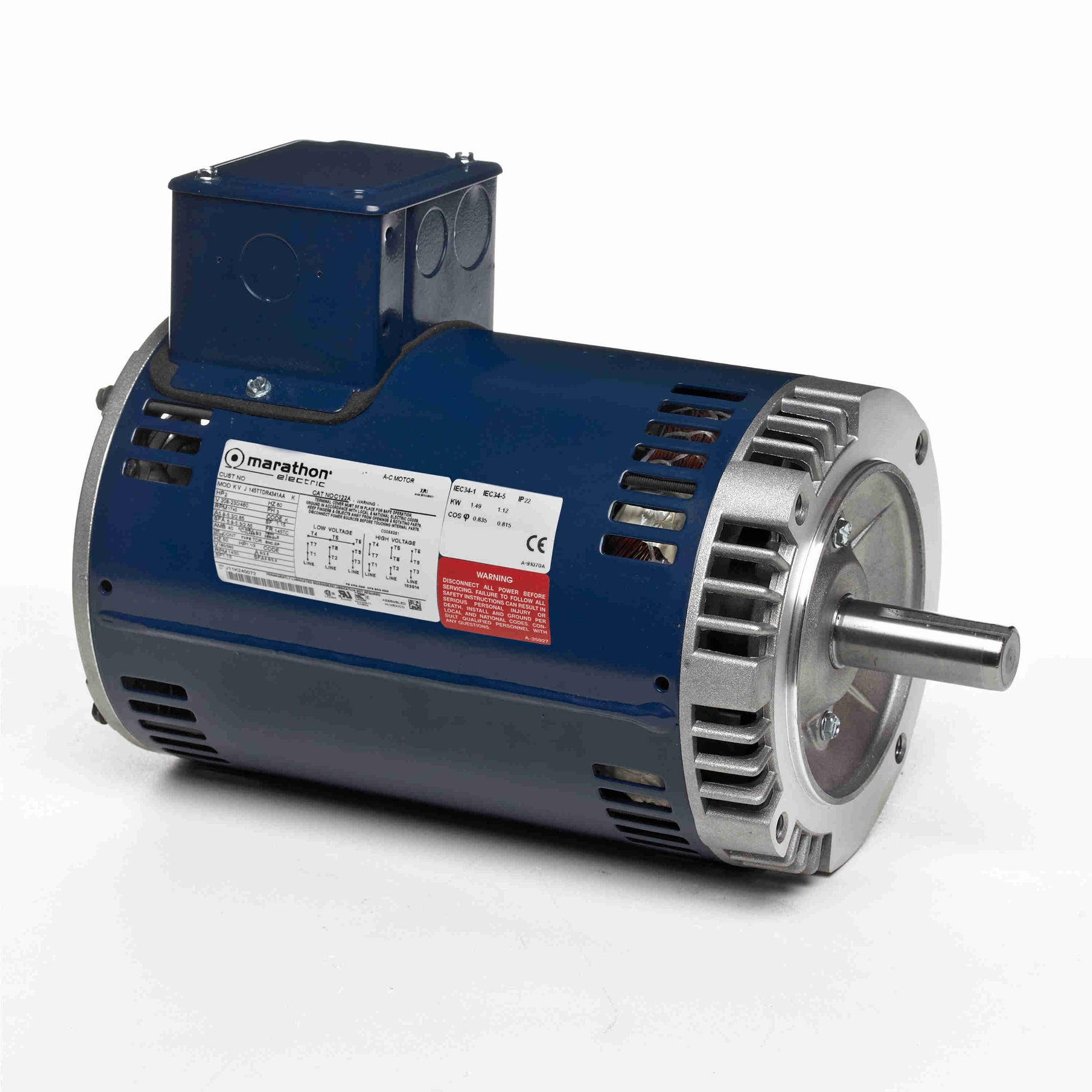

Marathon Electric C123C, 3 Hp, 1800 RPM, 182TC FR, 230/460 V, 3 PH, Dripproof, C-Face Footless, General Purpose, 182TTDW16065.

C123C, 3 Hp, 1800 RPM, 182TC FR, 230/460 V, 3 PH, Dripproof, C-Face Footless, General Purpose, 182TTDW16065.

General Specifications

Model : 182TTDW16065
Catalog No : C123C
Part Description : 3,1800,DP,182TC,3/60/230/460
Category : Open Drip Proof (ODP)
Stock : Yes

Nameplate Specifications

Output HP : 3 Hp
Output KW : 2.24 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 8/4 A
Speed : 1760 rpm
Service Factor : 1.15
Phases : 3
Efficiency : 89.5 %
Duty : CONTINUOUS
Insulation Class : F
Design Code : B
KVA Code : K
Frame : 182TC
Enclosure : DP
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6206
Opp Drive End Bearing Size : 6205
UL : Recognized
CSA : Y
CE : Y
IP Code : 12

Technical Specifications

Electrical Type : SQ CAGE IND RUN
Starting Method : ACROSS THE LINE
Poles : 4
Rotation : REV
Mounting : ROUND
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : T
Overall Length : 13.28 in
Frame Length : 9 in
Shaft Diameter : 1.13 in
Shaft Extension : 2.88 in
Assembly/Box Mounting : F1 ONLY
UPC : 722856039156
