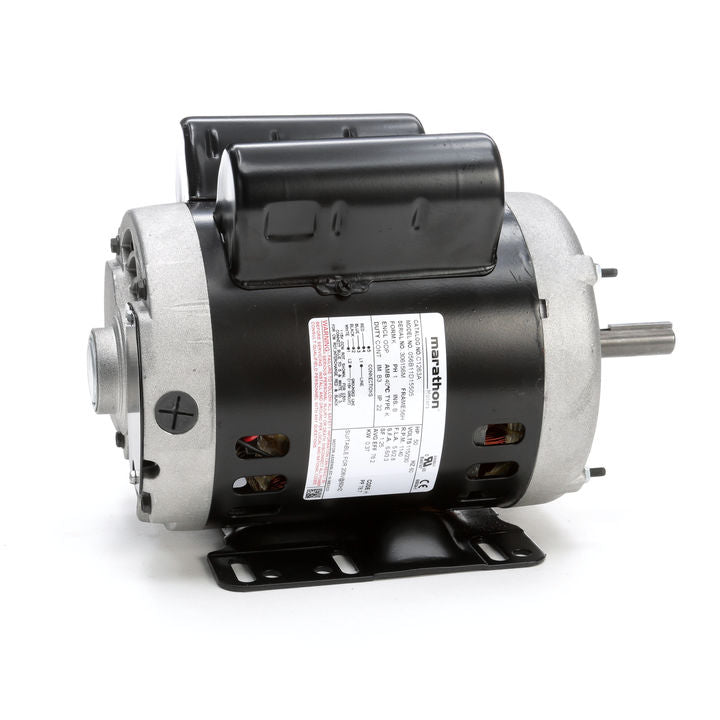

Marathon Electric C1263A, 1/2 HP, 1200 RPM, 56 FR, 115/230 V, 1 PH, Dripproof , Rigid Base, General Purpose, 56B11D15505

C1263A, 1/2 HP, 1200 RPM, 56 FR, 115/230 V, 1 PH, Dripproof , Rigid Base, General Purpose, 56B11D15505

General Specifications

Model : 056B11D15505
Catalog No : C1263A
Part Description : 1/2,1140,DP,56,1/60/115/230
Category : Open Drip Proof (ODP)
Stock : Yes

Nameplate Specifications

Output HP : 0.5 Hp
Output KW : 0.37 kW
Frequency : 60 Hz
Voltage : 115/230 V
Current : No Winding Group Reference Voltage Found. A
Speed : 1200 rpm
Service Factor : 1.25
Phases : 1
Efficiency : 76.2 %
Duty : CONTINUOUS
Insulation Class : B
Design Code : NO DESIGN CODE
KVA Code : K
Frame : 56C
Enclosure : DP
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : Y
IP Code : 22

Technical Specifications

Electrical Type : CAP START CAP RUN
Starting Method : ACROSS THE LINE
Poles : 6
Rotation : SELECTIVE CCW
Mounting : RIGID
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : STANDARD 56
Overall Length : 12.12 in
Frame Length : 8.25 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 OUT ODE BRKT RADIAL
UPC : 722856081803
Weight : 35.00 LB
