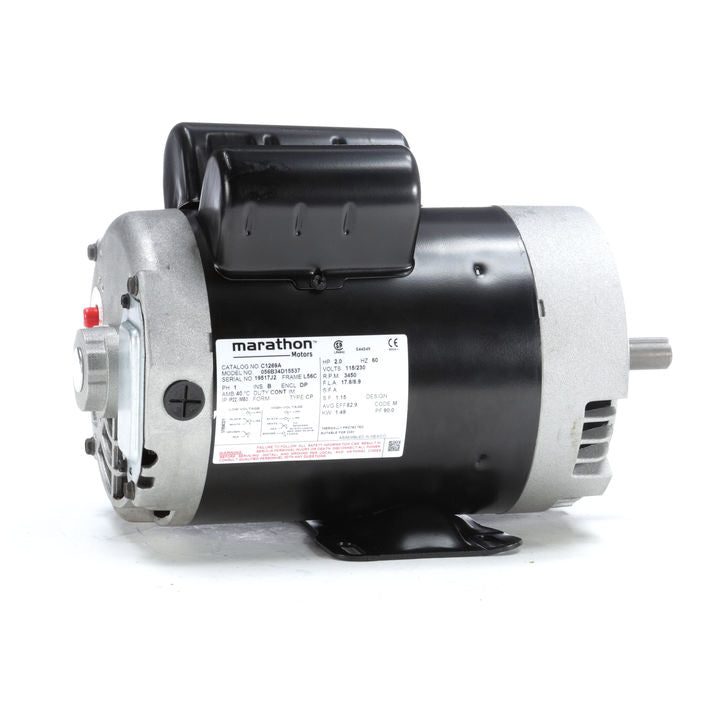

Marathon Electric C1269A, 2 HP, 3600 RPM, 56C FR, 115/230 V, 1 PH, Dripproof, C-Face Footed, General Purpose, 056B34D15537.

C1269A, 2 HP, 3600 RPM, 56C FR, 115/230 V, 1 PH, Dripproof, C-Face Footed, General Purpose, 056B34D15537.

General Specifications

Model : 056B34D15537
Catalog No : C1269A
Part Description : MODEL-CFHP-56FR
Category : Open Drip Proof (ODP)
Stock : No

Nameplate Specifications

Output HP : 2 Hp
Output KW : 1.49 kW
Frequency : 60 Hz
Voltage : 115/230 V
Current : 17.8/8.9 A
Speed : 3450 rpm
Service Factor : 1.15
Phases : 1
Efficiency : 82.9 %
Duty : CONTINUOUS
Insulation Class : B
Design Code : NO DESIGN CODE
KVA Code : K
Frame : 56
Enclosure : DP
Overload Protector : MANUAL
Ambient Temperature : 40 °C
UL : Recognized
CSA : Y
CE : Y
IP Code : 12

Technical Specifications

Electrical Type : CAP START CAP RUN
Starting Method : ACROSS THE LINE
Poles : 2
Rotation : SELECTIVE CCW
Mounting : RIGID
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : T
Overall Length : 12.69 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 OUT ODE BRKT RADIAL
Weight : 31.00 LB
