Industrial Motors

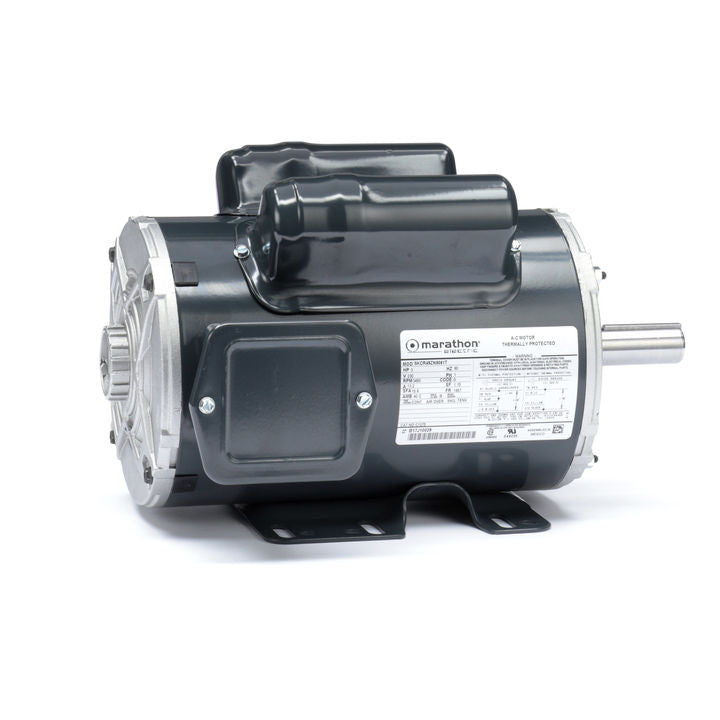

Marathon Electric C1275, 3 Hp, 3600 Rpm, 145T FR, 230 Vac, 1 PH, TEAO, Aeration Fan, Farm/Agricultural Duty, Rigid Base, 5KCR49ZN8061T.

Marathon Electric C1275, 3 Hp, 3600 Rpm, 145T FR, 230 Vac, 1 PH, TEAO, Aeration Fan, Farm/Agricultural Duty, Rigid Base, 5KCR49ZN8061T.

$2,491.00
$2,491.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$2,491.00 $2,366.45
Sale

C1275, 3 Hp, 3600 Rpm, 145T FR, 230 Vac, 1 PH, TEAO, Aeration Fan, Farm/Agricultural Duty, Rigid Base, 5KCR49ZN8061T.

Engineering Data

Nameplate Specifications

Output HP  3 Hp
Output KW  2.24 kW
Frequency  60 Hz
Voltage  230 V
Current  13.2 A
Speed  3450 rpm
Service Factor  1.15
Phases  1
Efficiency  79 %
Duty  CONT
Insulation Class  B
KVA Code  G
Frame  145T
Enclosure  TENV
Overload Protector  AUTO
Ambient Temperature  40 °C
Drive End Bearing Size  6205
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Yes
CE  N

Technical Specifications

Electrical Type Capacitor Start Capacitor Run(CSCR)
Starting Method SM
Poles  2
Rotation  CCW/CW
Mounting  WB
Motor Orientation  ANY
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  Rolled Steel
Overall Length  13.69 in
Frame Length  8.99 in
Shaft Diameter 0.88 in
Shaft Extension  2.25 in
