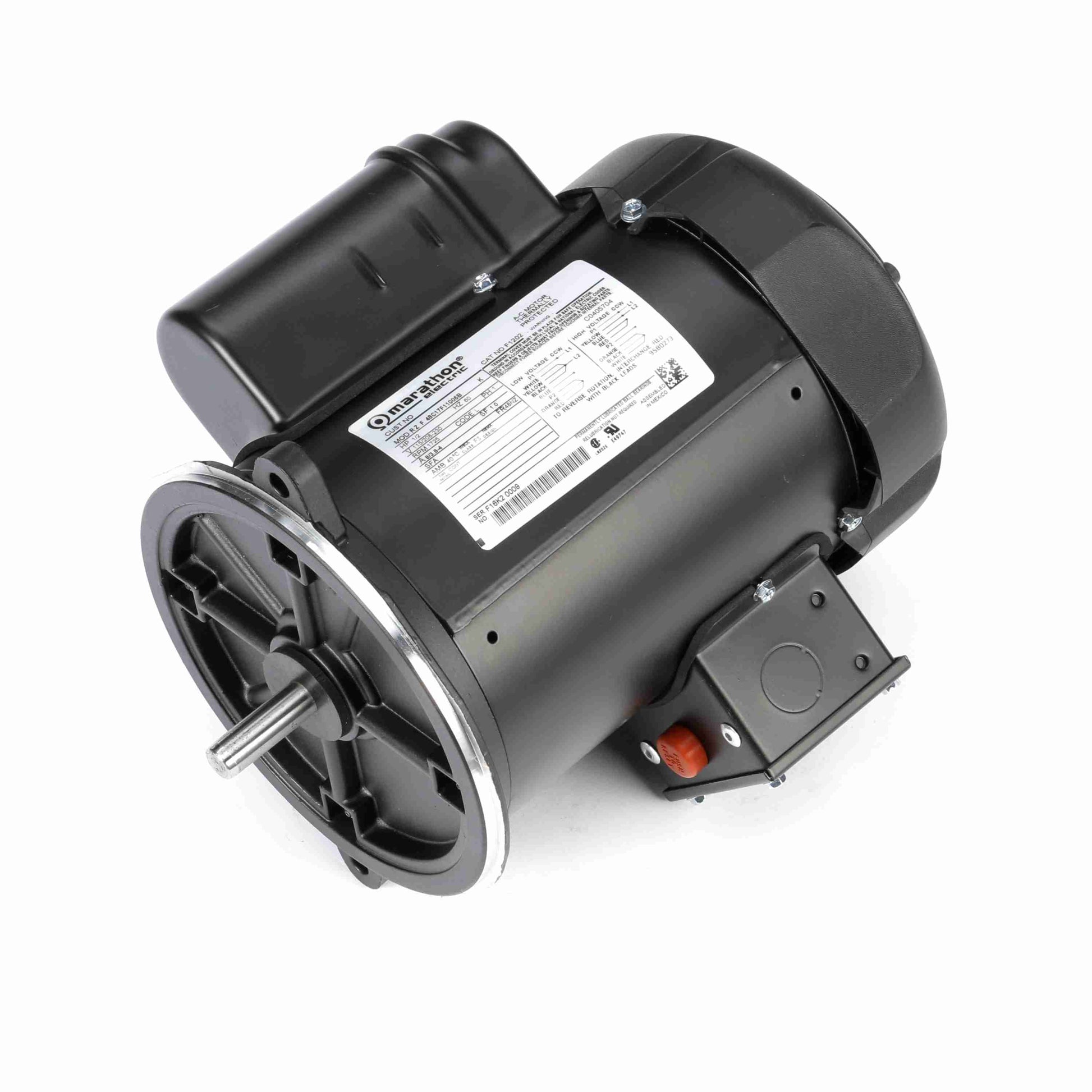

Marathon Electric C1294, 1 Hp, 1800/1500 Rpm, 56NY FR, 115/208-230 Vac, 1 PH, TEFC, N Flange, Farm Duty, Auger Drive, 5KCR49UN0079U.

C1294, 1 Hp, 1800/1500 Rpm, 56NY FR, 115/208-230 Vac, 1 PH, TEFC, N Flange, Farm Duty, Auger Drive, 5KCR49UN0079U.

Engineering Data

Output HP : 1 HP
Output KW : 0.75 kW
Frequency : 60 Hz
Voltage : 115/208-230 V
Current : 10.8,6.0-5.4 A
Speed : 1725/1425 RPM
Service Factor : 1
Phase : 1
Efficiency : 74 %
Duty : Continuous
Insulation Class : B
KVA Code : M
Frame : 56NY
Enclosure : Totally Enclosed Fan Cooled
Overload Protector : MAN
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes CE : N
Technical Specifications
Electrical Type : Capacitor Start Capacitor Run
Starting Method : SM
Poles : 4
Rotation : Counterclockwise/Clockwise
Mounting : Round
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 14.51 in
Frame Length : 8.99 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.88 in
