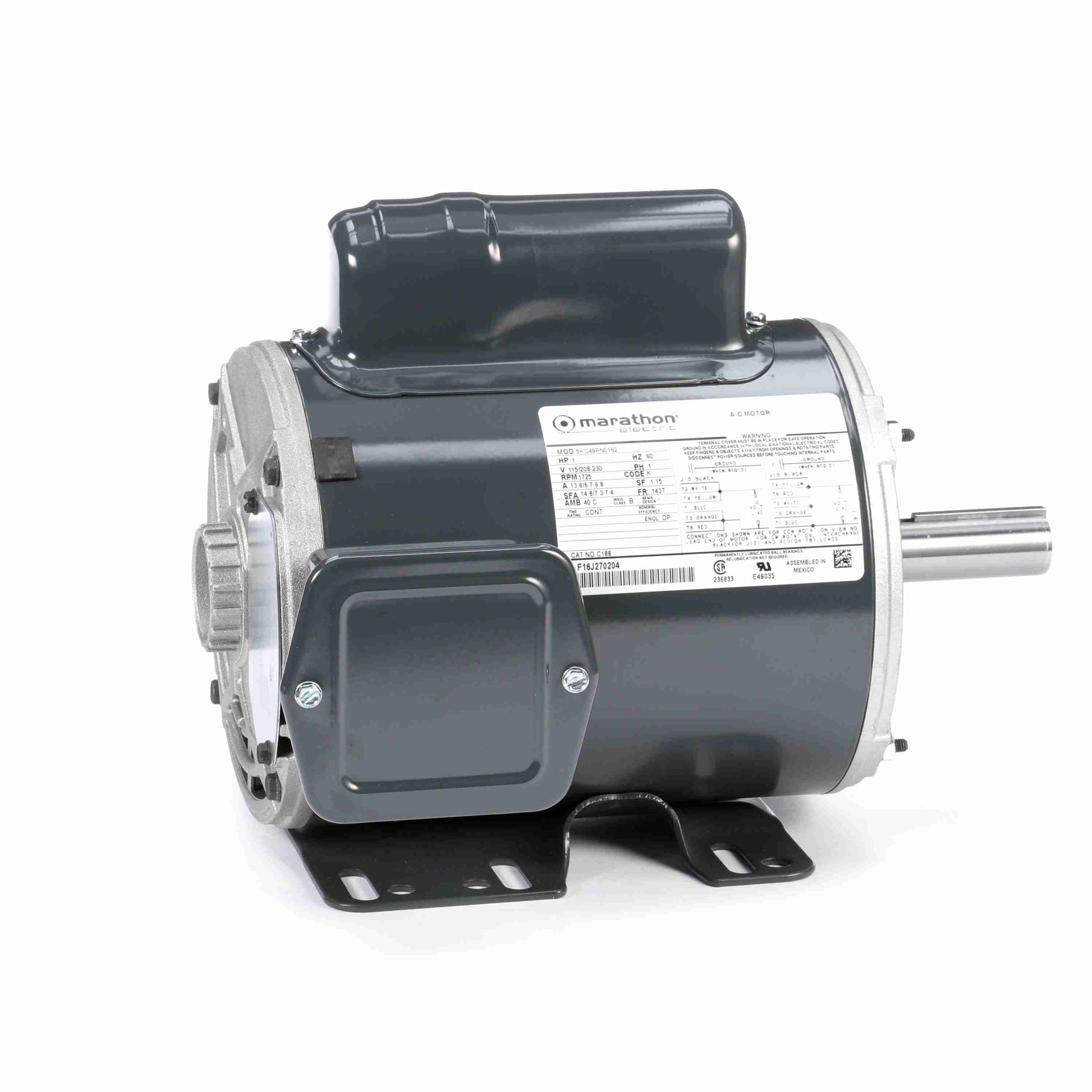

Marathon Electric C1298A, 3/4 HP, 1800 RPM, 56 FR, 115/208-230 Vac, 1 PH, Dripproof, Rigid Base, General Purpose, 56B17DRR70012A1.

C1298A, 3/4 HP, 1800 RPM, 56 FR, 115/208-230 Vac, 1 PH, Dripproof, Rigid Base, General Purpose, 56B17DRR70012A1.

General Specifications

Model : 5KC46NN0758Y
Catalog No : C1298
Part Description : 3/4,1725,DP,56,1,60,115/208-230
Category : Open Drip Proof (ODP)
Stock : Yes

Nameplate Specifications

Output HP : 0.75 Hp
Output KW : 0.56 kW
Frequency : 60 Hz
Voltage : 115/208-230 V
Current : 6.6/3.5-3.3 A
Speed : 1725 rpm
Service Factor : 1.25
Phases : 1
Efficiency : 81.8 %
Duty : CONTINUOUS
Insulation Class : B
Design Code : N
KVA Code : L
Frame : 56
Enclosure : DP
Overload Protector : MANUAL
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : Y
IP Code : 22

Technical Specifications

Electrical Type : CAP START CAP RUN
Starting Method : ACROSS THE LINE
Poles : 4 Rotation : SELECTIVE CCW
Mounting : RIGID
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : STANDARD 56
Overall Length : 12.49 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY
