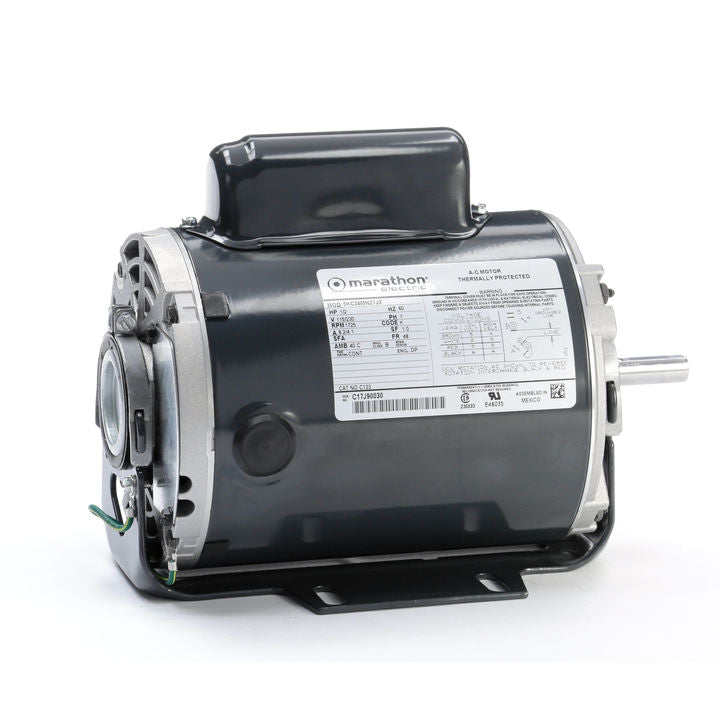

Marathon Electric C133, 1/2 HP, 1725 RPM, 48 FR, 115/230 Vac, 1 PH, Dripproof, Resilient Base, Fan and Blower, 5KC36MN27X.

C133, 1/2 HP, 1725 RPM, 48 FR, 115/230 Vac, 1 PH, Dripproof, Resilient Base, Fan and Blower, 5KC36MN27X.

General Specifications

Model : 5KC36MN27X
Catalog No : C133
Part Description : 1/2,1725,DP,48,1/60/115/230
Category : Open Drip Proof (ODP)
Stock : Yes

Nameplate Specifications

Output HP : 0.5 Hp
Output KW : 0.37 kW
Frequency : 60 Hz
Voltage : 115/230 V
Current : 8.2,4.1 A
Speed : 1725 rpm
Service Factor : 1
Phases : 1
Efficiency : 62 %
Duty : CONT
Insulation Class : B
KVA Code : K
Frame : 48
Enclosure : DP
Overload Protector : AUTO
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203 Opp Drive
End Bearing Size : 6203
UL : Recognized
CSA : Yes
CE : N

Technical Specifications

Electrical Type : Capacitor start(CSIR)
Starting Method : SM
Poles : 4 Rotation : CCW/CW
Mounting : RB Motor
Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 10 in
Frame Length : 6.22 in
Shaft Diameter : 0.5 in
Shaft Extension : 1.5 in
UPC : 722856007735
Weight : 19.00 LB
