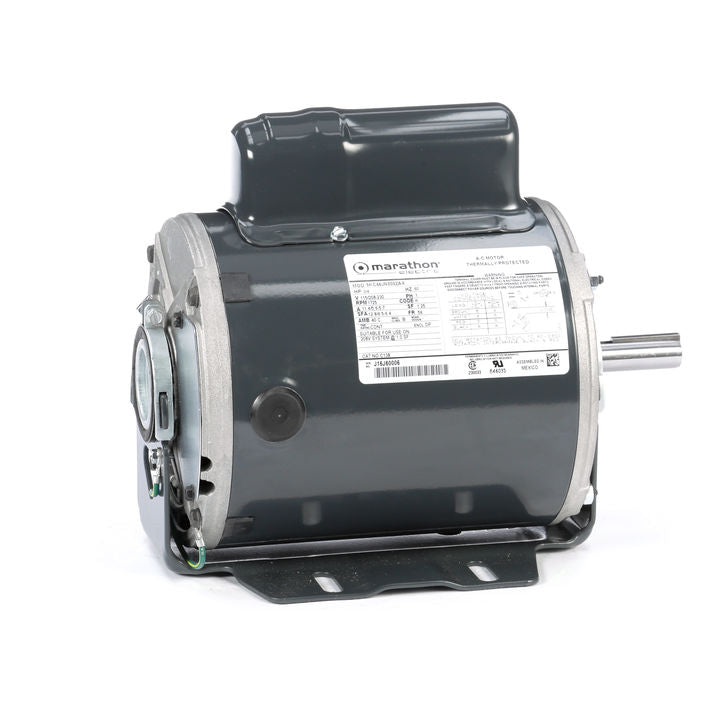

Marathon Electric C138, 5KC46JN0002X, 3/4 Hp, 1725 RPM, 56 FR, 115/208-230 V, 1 PH, Dripproof , Resilient Base, Fan and Blower

C138, 5KC46JN0002X, 3/4 Hp, 1725 RPM, 56 FR, 115/208-230 V, 1 PH, Dripproof , Resilient Base, Fan and Blower

General Specifications

Model : 5KC46JN0002X
Catalog No : C138
Part Description : 3/4,1725,DP,56,1/60/115/230
Category : Open Drip Proof (ODP)
Stock : Yes

Nameplate Specifications

Output HP : 0.75 Hp
Output KW : 0.56 kW
Frequency : 60 Hz
Voltage : 115/208-230 V
Current : 11.4,5.6-5.7 A
Speed : 1725 rpm
Service Factor : 1.25
Phases : 1
Efficiency : 68 %
Duty : CONT
Insulation Class : B
KVA Code : K
Frame : 56
Enclosure : DP
Overload Protector : AUTO
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes
CE : N
IP Code : 22

Technical Specifications

Electrical Type : Capacitor start(CSIR)
Starting Method :
SM Poles : 4
Rotation : CCW/CW
Mounting : RB
Motor Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 10.88 in
Frame Length : 6.55 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.88 in
UPC : 722856007315
Weight : 23.00 LB
