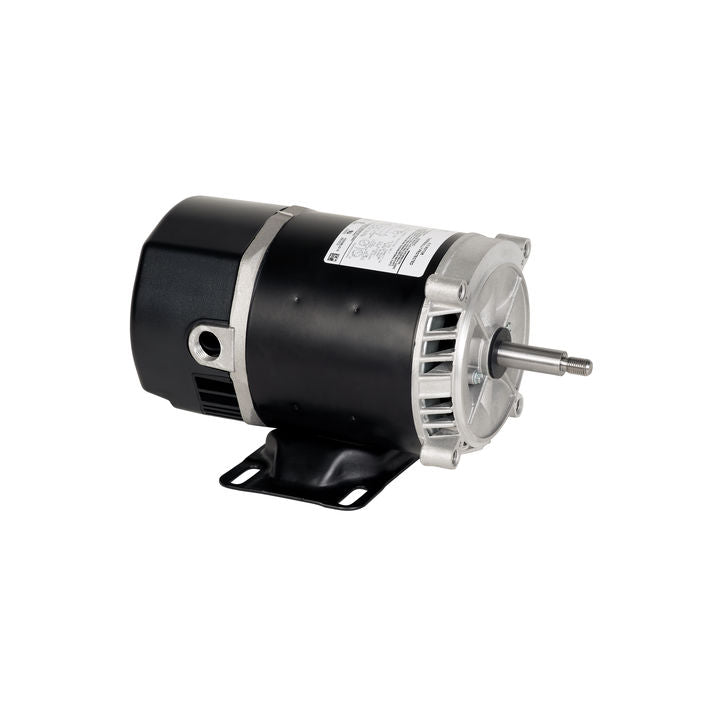

Marathon Electric C1463A, 3/4 Hp, 3600 RPM, 56J FR, 115/230 Vac, 1 PH, Dripproof, C-Face Footless, Jet Pump, 5KC39PN6201X.

C1463A, 3/4 Hp, 3600 RPM, 56J FR, 115/230 Vac, 1 PH, Dripproof, C-Face Footless, Jet Pump, 5KC39PN6201X.

General Specifications

Model : 5KC33MN2889X
Catalog No : C1463
Part Description : 3/4,3450,DP,56J,1/60/115/230
Category : Jet Pump
Stock : Yes

Nameplate Specifications

Output HP : 0.75 Hp
Output KW : 0.56 kW
Frequency : 60 Hz
Voltage : 115/230 V
Current : 11.6,5.8 A
Speed : 3450 rpm
Service Factor : 1.5
Phases : 1
Efficiency : 64 %
Duty : CONT
Insulation Class : B
KVA Code : M
Frame : 56J
Enclosure : DP
Overload Protector : AUTO
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes
CE : N

Technical Specifications

Electrical Type : Capacitor start(CSIR)
Starting Method : SM
Poles : 2
Rotation : CW
Mounting : WB
Motor Orientation : ANY
Drive End Bearing : LOCKED
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 12.42 in
Frame Length : 5.41 in
Shaft Diameter : 0.63 in
Shaft Extension : 2.39 in
UPC : 722856032003
Weight : 19.00 LB
