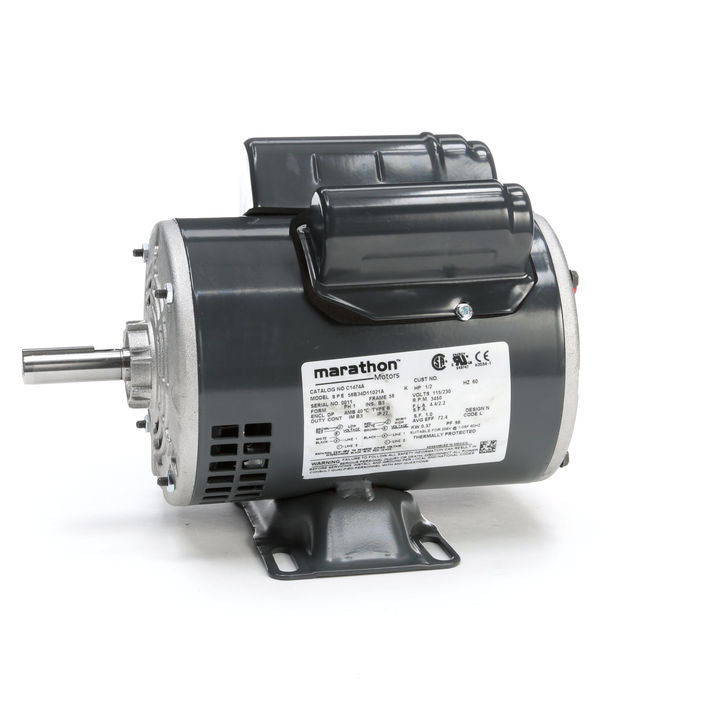

Marathon Electric C1474A, 1/2 HP, 3600 RPM, 56 FR, 115/230 V, 1 PH, Dripproof, Rigid Base, General Purpose, 56B34D11021.

C1474A, 1/2 HP, 3600 RPM, 56 FR, 115/230 V, 1 PH, Dripproof, Rigid Base, General Purpose, 56B34D11021.

General Specifications

Model : 056B34D11021
Catalog No : C1474A
Part Description : 1/2,3600,56,DP,1/60/115/230
Category : Open Drip Proof (ODP)
Stock : Yes

Nameplate Specifications

Output HP : 0.5 Hp
Output KW : 0.37 kW
Frequency : 60 Hz
Voltage : 115/230 V
Current : 4.4/2.2 A
Speed : 3450 rpm
Service Factor : 1
Phases : 1
Efficiency : 72.4 %
Duty : CONTINUOUS
Insulation Class : B
Design Code : N
KVA Code : L
Frame : 56
Enclosure : DP
Overload Protector : MANUAL
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : Y
IP Code : 22

Technical Specifications

Electrical Type : CAP START CAP RUN
Starting Method : ACROSS THE LINE
Poles : 2
Rotation : SELECTIVE CCW
Mounting : RIGID
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL
Shaft Type : STANDARD 56
Overall Length : 10.97 in
Frame Length : 7 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.97 in
Assembly/Box Mounting : F1 ONLY
