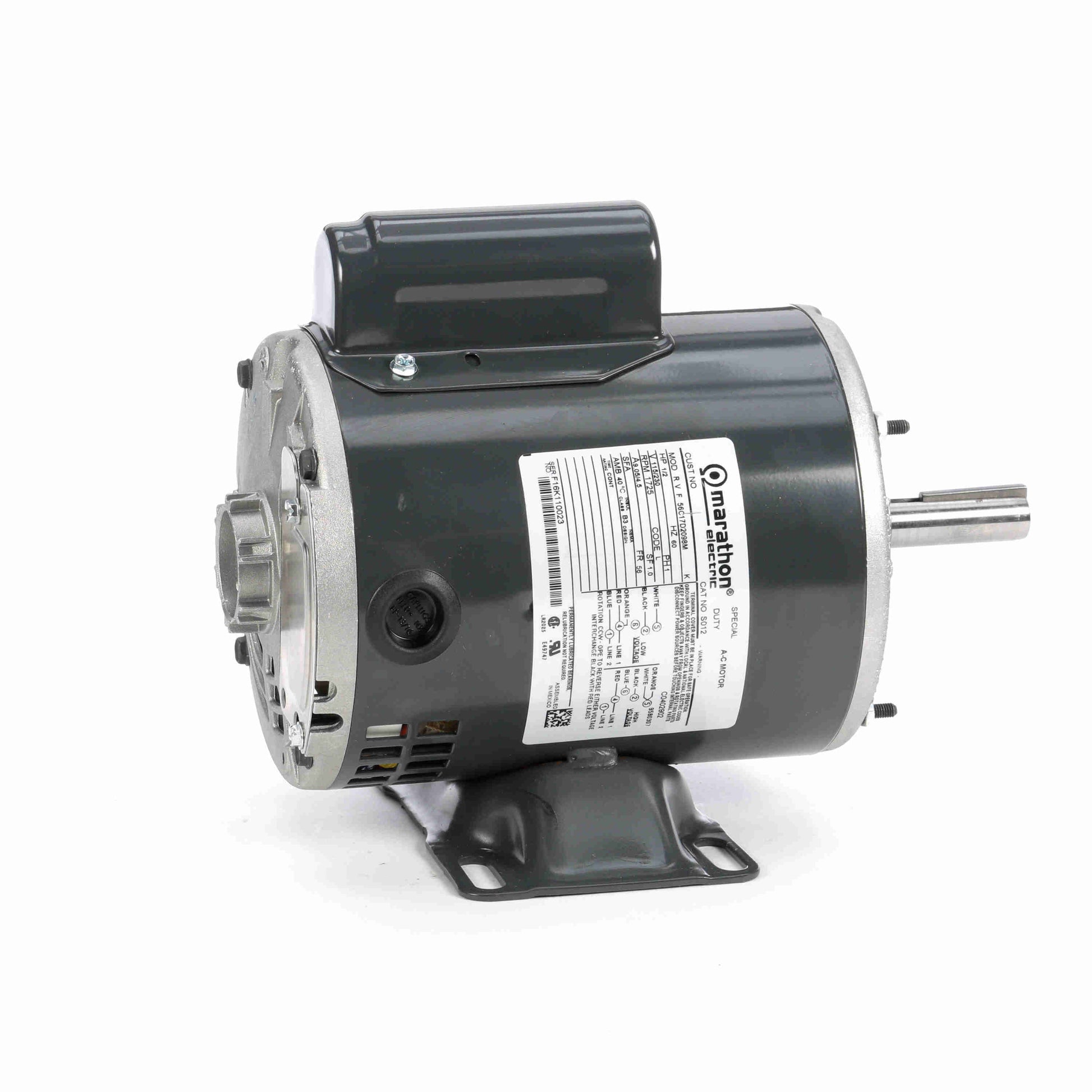

Marathon Electric C1477A, 1 1/2 HP, 3600 RPM, 56 FR,115/230 V, 1 PH, Dripproof, Rigid Base, General Purpose, 56B34D99008.

C1477A, 1 1/2 HP, 3600 RPM, 56 FR,115/230 V, 1 PH, Dripproof, Rigid Base, General Purpose, 56B34D99008.

General Specifications

Model : 056B34D99008
Catalog No : C1477A
Part Description : 1.5,3450,DP,56,1/60/115/23
0Category : Open Drip Proof (ODP)
Stock : Yes

Nameplate Specifications

Output HP : 1.5 Hp
Output KW : 1.12 kW
Frequency : 60 Hz
Voltage : 115/230 V
Current : 16.8 A
Speed : 3450 rpm
Service Factor : 1.15
Phases : 1
Efficiency : 73.6 %
Duty : CONT Insulation
Class : B Design Code : L
KVA Code : J
Frame : 56
Enclosure : DP
Overload Protector : MAN
Ambient Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Y
CE : N

Technical Specifications

Electrical Type : Capacitor start(CSIR)
Starting Method : SM
Poles : 2 Rotation : CCW/CW
Mounting : WB Motor
Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Overall Length : 11.82 in
Frame Length : 7.68 in
Shaft Extension : .625 X 1.88 .188 X .188 KEY in
UPC : 722856006646
Weight : 36.00 LB
