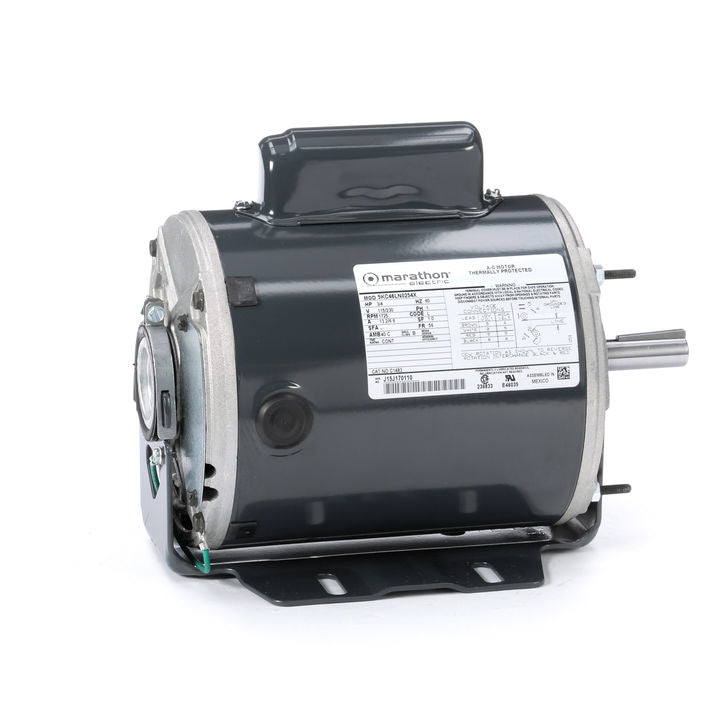

Marathon Electric C1483, 3/4 Hp, 1725 RPM, 56 FR, 115/230 V, 1 PH, Dripproof, Resilient Base, Fan and Blower, 5KC46LN0254X.

C1483, 3/4 Hp, 1725 RPM, 56 FR, 115/230 V, 1 PH, Dripproof, Resilient Base, Fan and Blower, 5KC46LN0254X.

Engineering Data

General Specifications
Model : 5KC46LN0254X
Catalog No : C1483
Part Description : 3/4,1725,DP,56,1/60/115/230
Category : Open Drip Proof
(ODP)Stock : Yes
Nameplate Specifications
Output HP : 0.75 Hp
Output KW : 0.56 kW
Frequency : 60 Hz
Voltage : 115/230 V
Current : 13.2,6.6 A
Speed : 1725 rpm
Service Factor : 1
Phases : 1
Efficiency : 65.4 %
Duty : CONT Insulation
Class : B Design
Code : - KVA
Code : L
Frame : 56
Enclosure : DP Overload
Protector : AUTO Ambient
Temperature : 40 °C
Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203
UL : Recognized
CSA : Yes
CE : N
Technical Specifications
Electrical Type : Capacitor start(CSIR) Starting
Method : SM
Poles : 4
Rotation : CW/CCW
Mounting : RB Motor
Orientation : ANY
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Overall Length : 10.78 in
Frame Length : 6.55 in
Shaft Diameter : 0.63 in
Shaft Extension : 1.88 in
UPC : 722856007742
Weight : 25.00 LB
